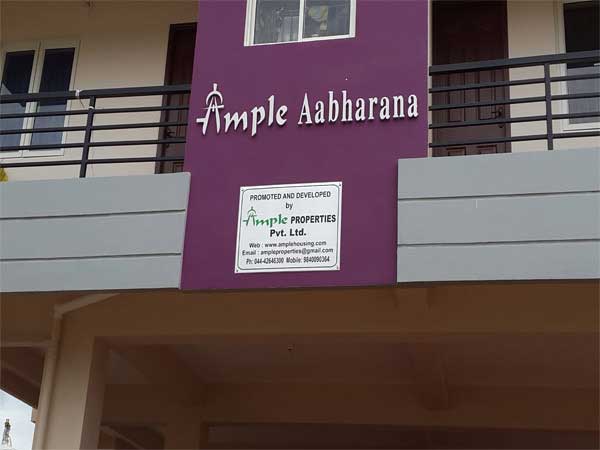

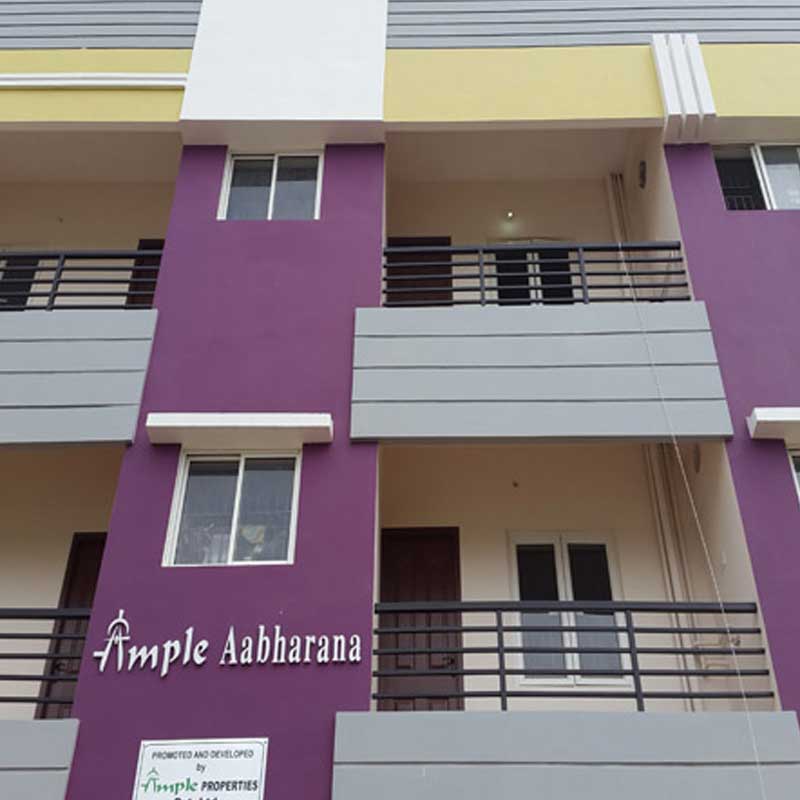

Ample Aabharanaa

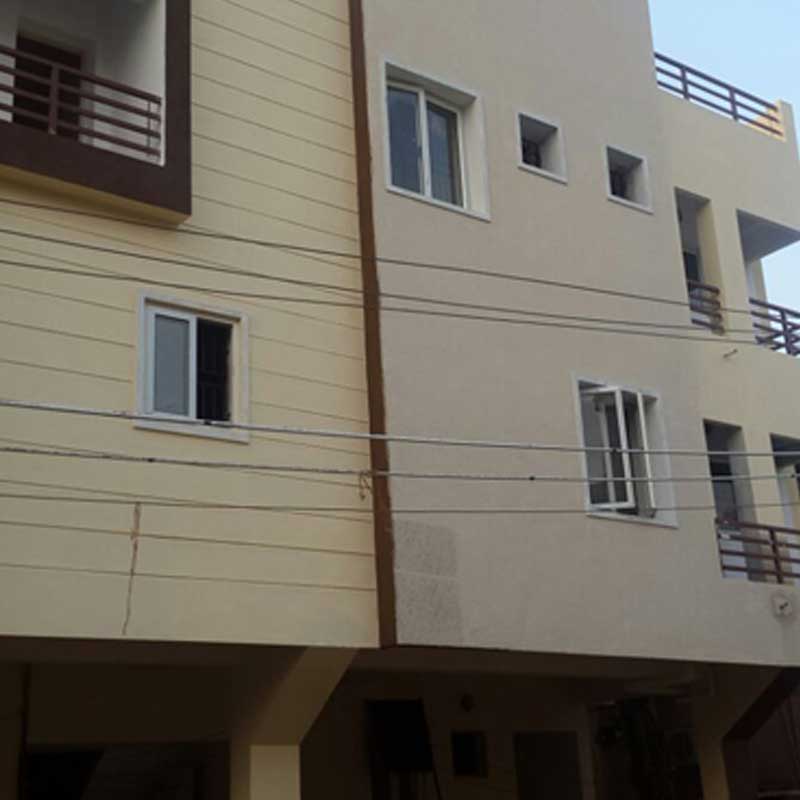

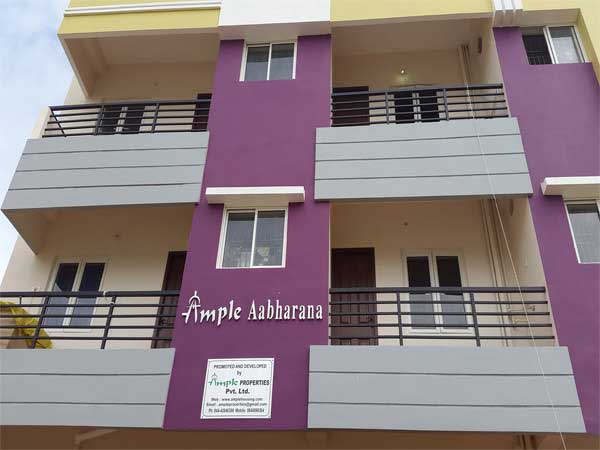

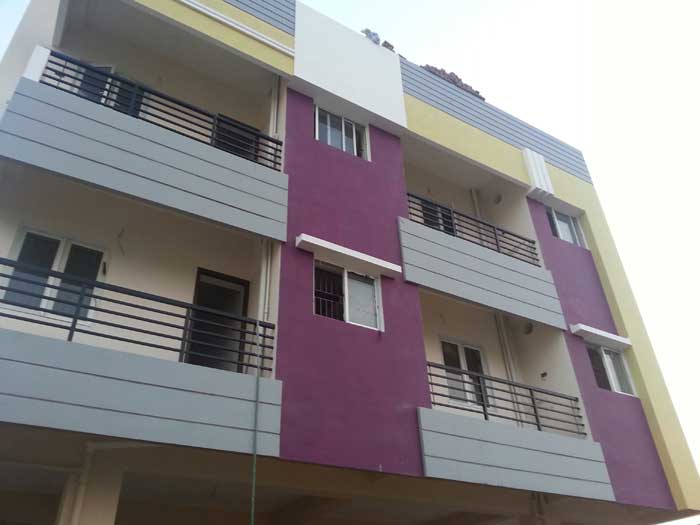

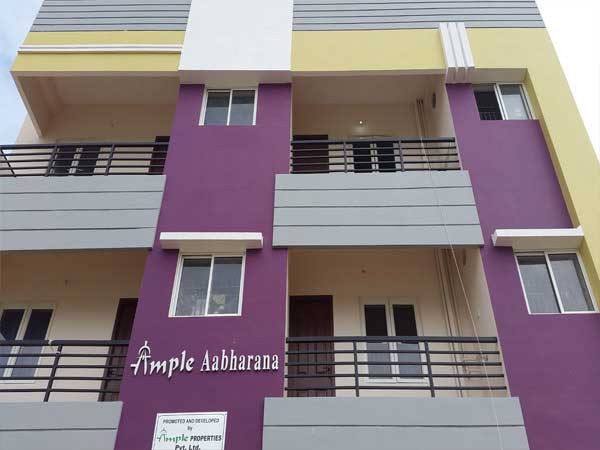

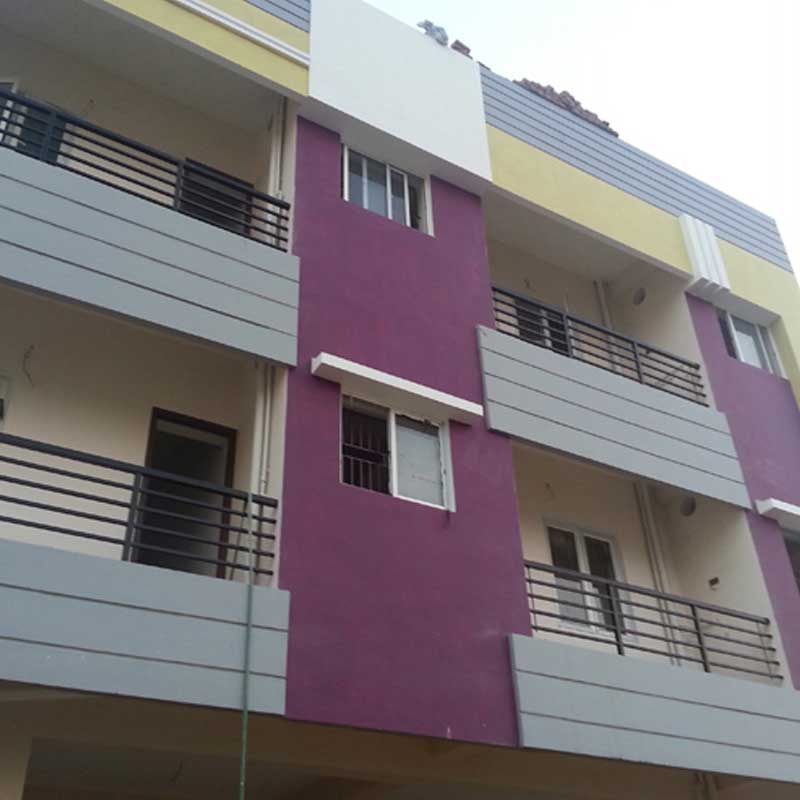

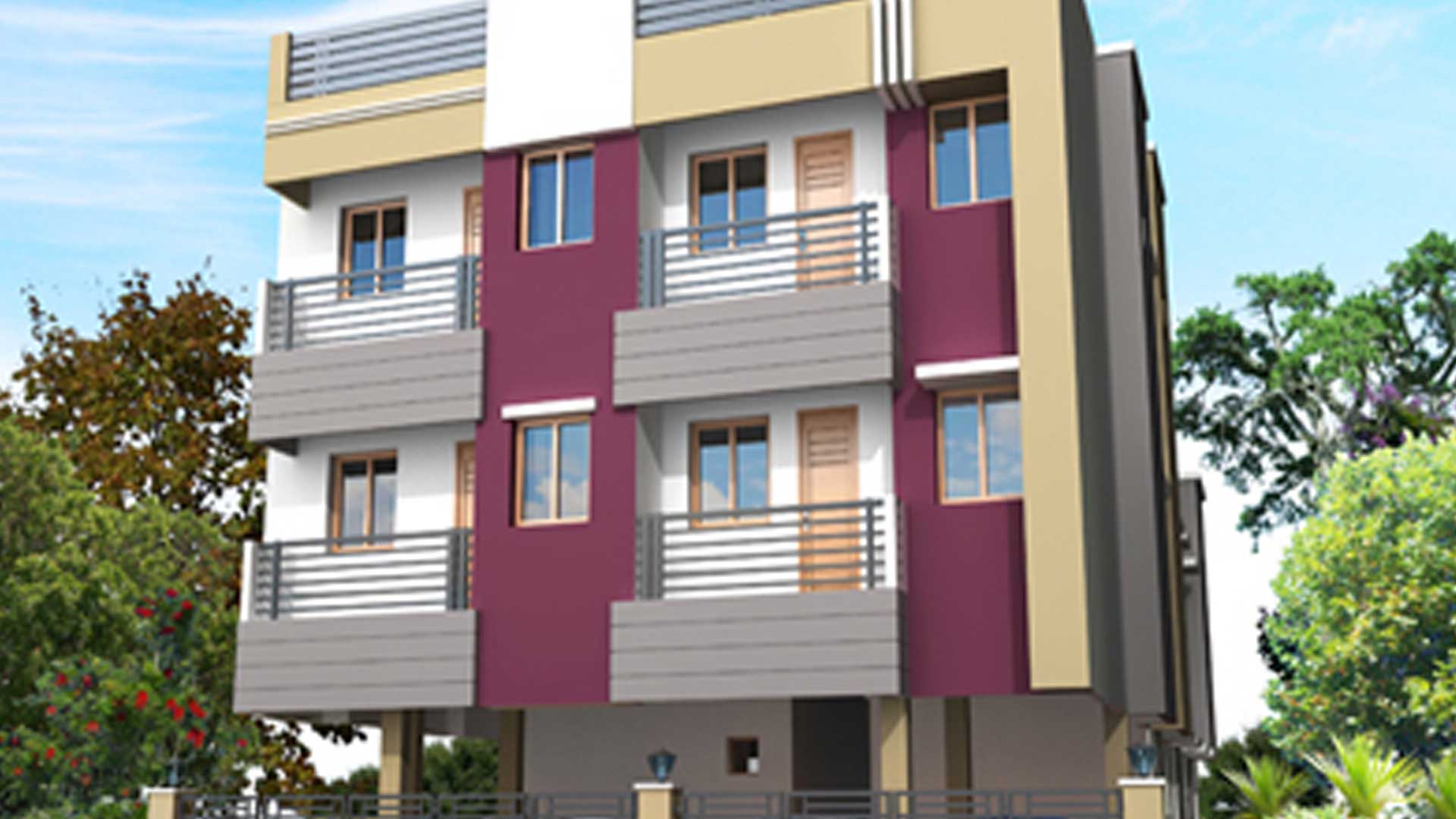

Elevation
Site Address

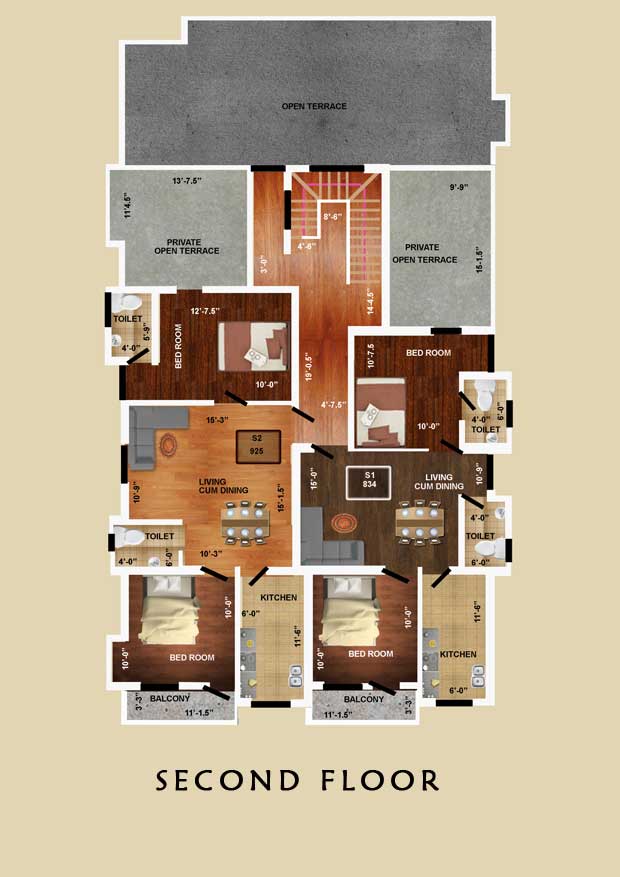

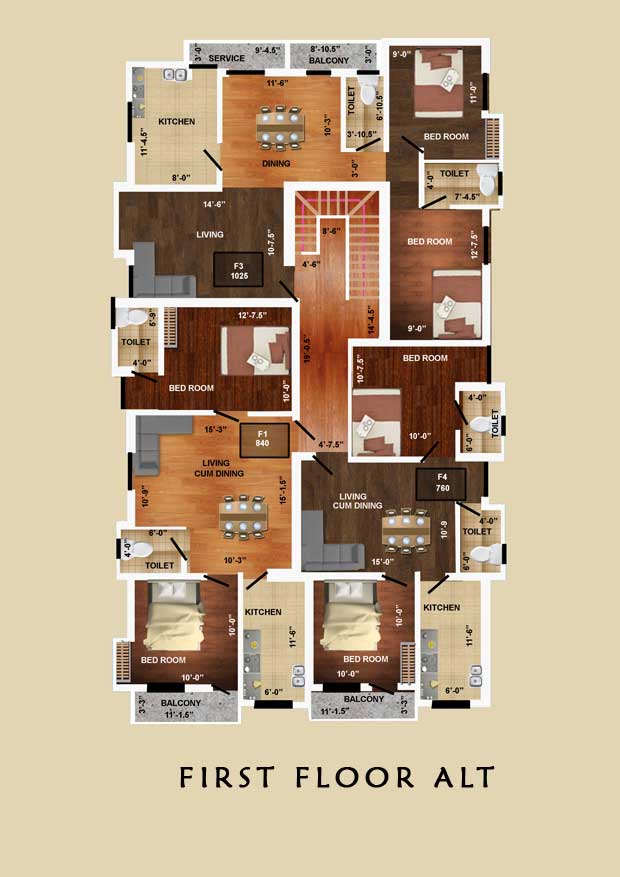

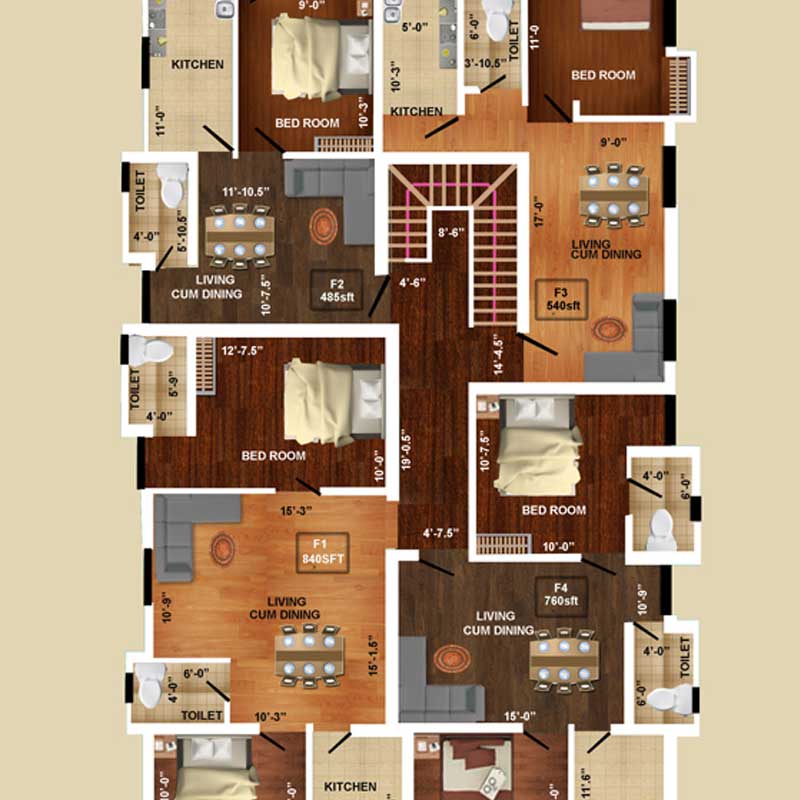

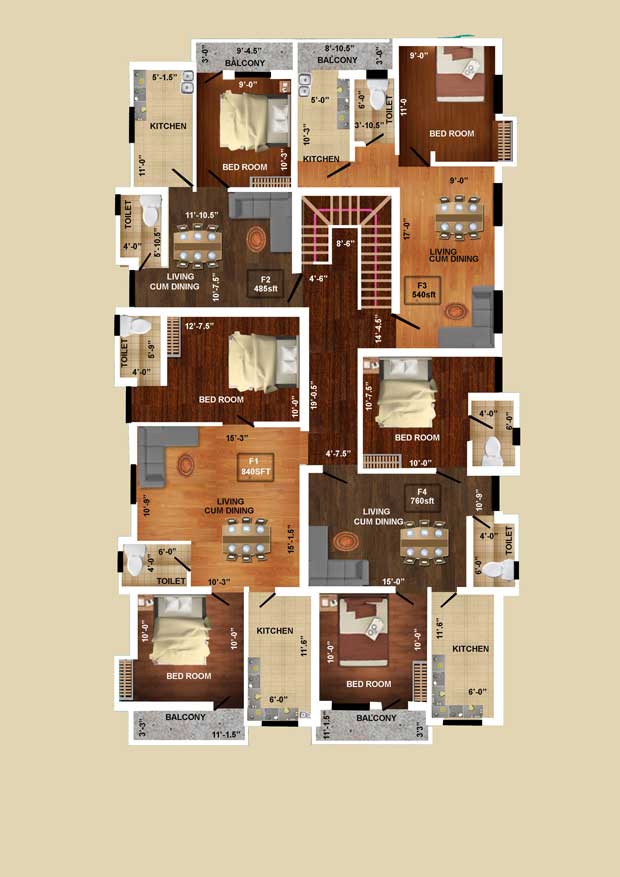

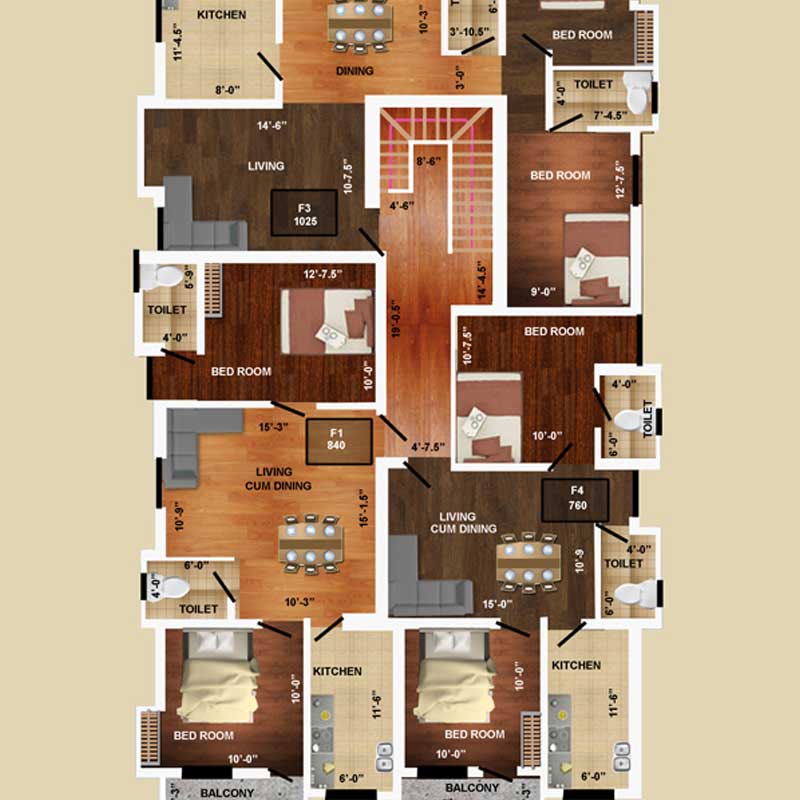

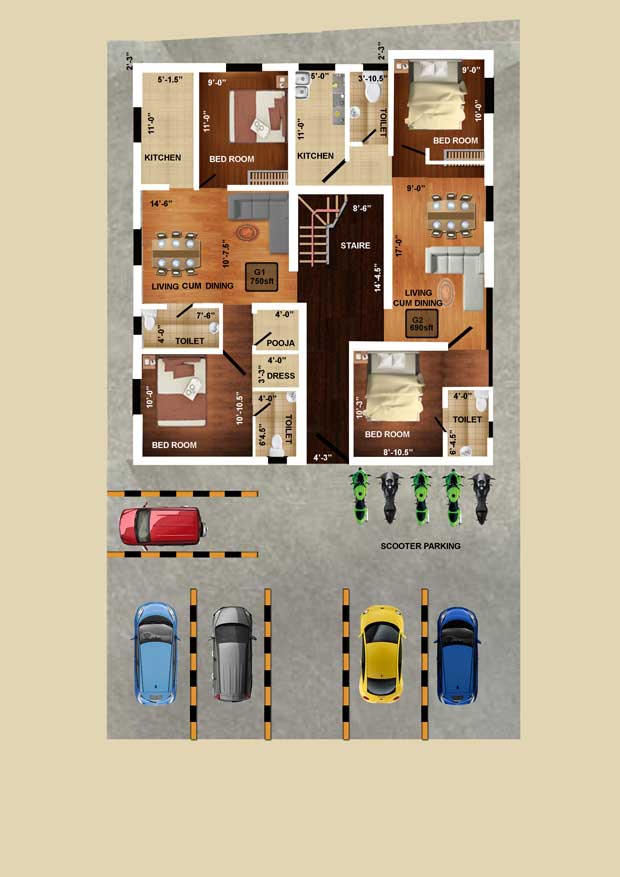

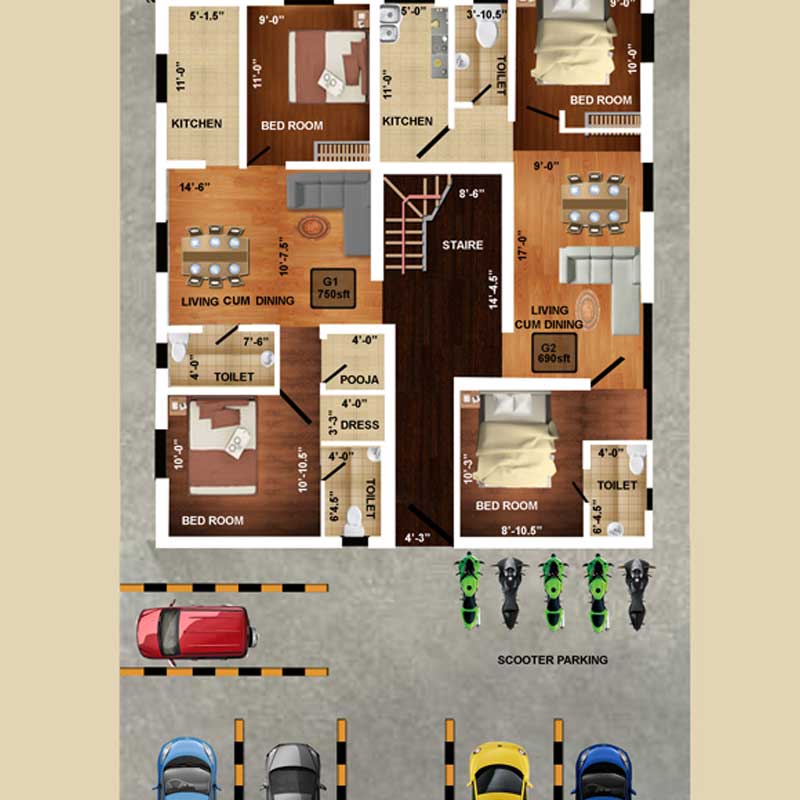

Floor Plans
Specificiation
CIVIL:

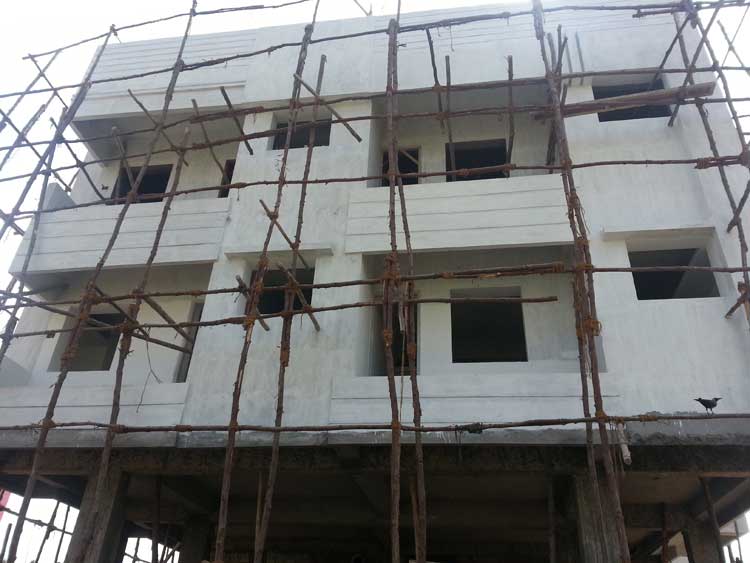

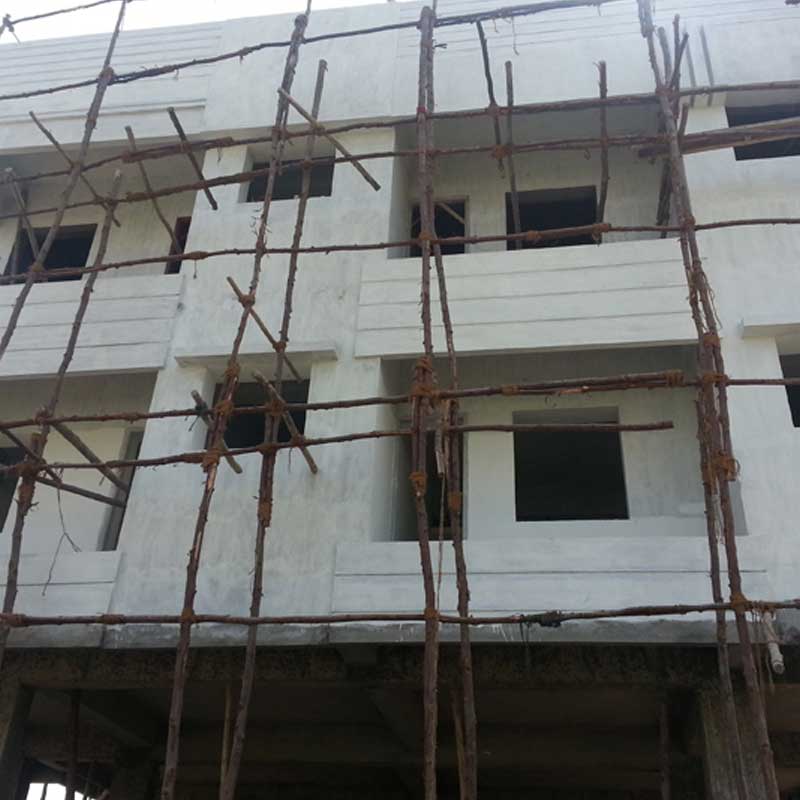

RCC STRUCTURE WITH EARTHQUAKE RESISTANT SEIZMIC DESIGN code applied.
CONCRETE:
ALL RCC FOOTING/SLAB / BEAM/ COLOUMN are done by machine mix ratio 1:11/2:3 M20 grade concrete with proper side plywood board shuttering bottom Wooden planks and Jakie and span used for centering.
REINFORCEMENT: STANDARD ISI BRAND WITH FE 500 GRADE USED as per structural detailing in all stages.
BRICK WORK:
OUTER WALL 9” thickness with 1:6 RATIO
INNER PARTION WALL thickness 1:4 RATIO using hoopiron mesh in 3ft intervals to avoid wall cracks in future.
LINTEL&LOFTS : 7ft form the floor lvl Loft width 2ft on one side wall will be given (shorter side)
COLOUMN &BEAM : All column and beam joint chicken mesh provided and all electrical junctions mesh will be given.
FLOORING:

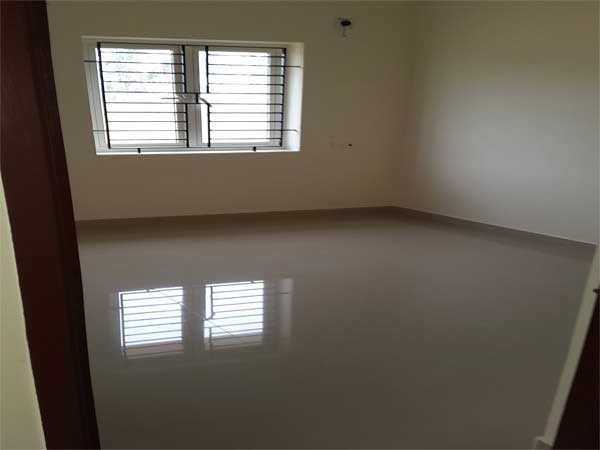

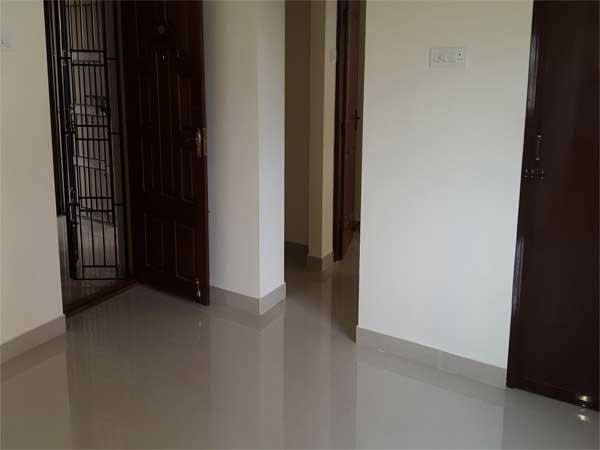

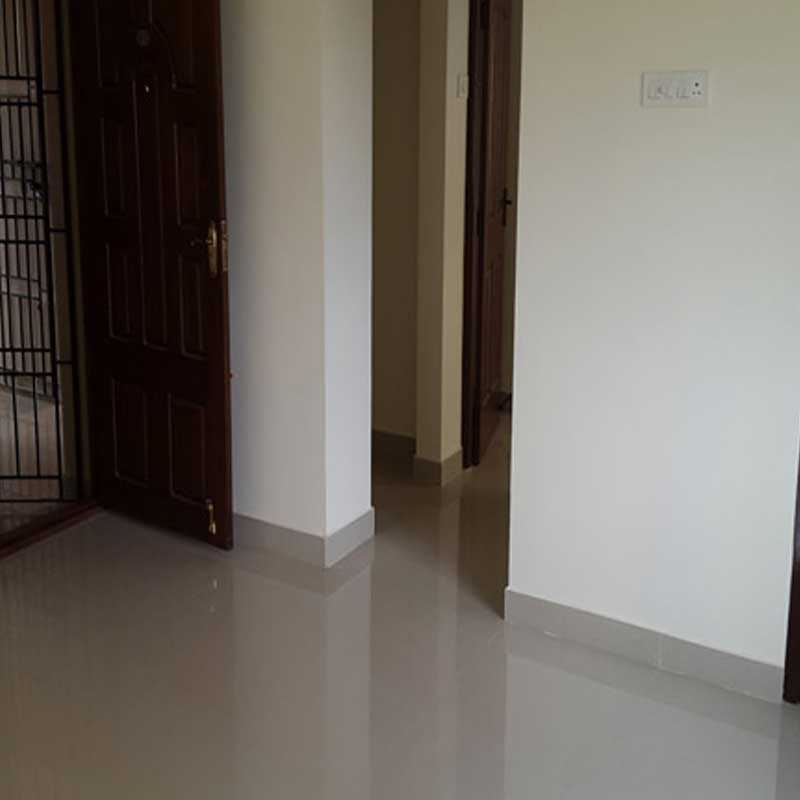

LIVING/DINING/KITCHEN: VIRTRIFIED NANO STAIN FREE TILE OF GOOD BRAND 2X2
BALCONY /SERVICE: 1X1 ANTI SKID

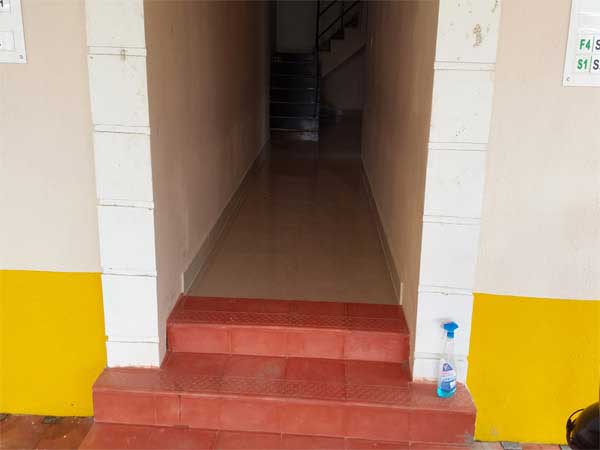

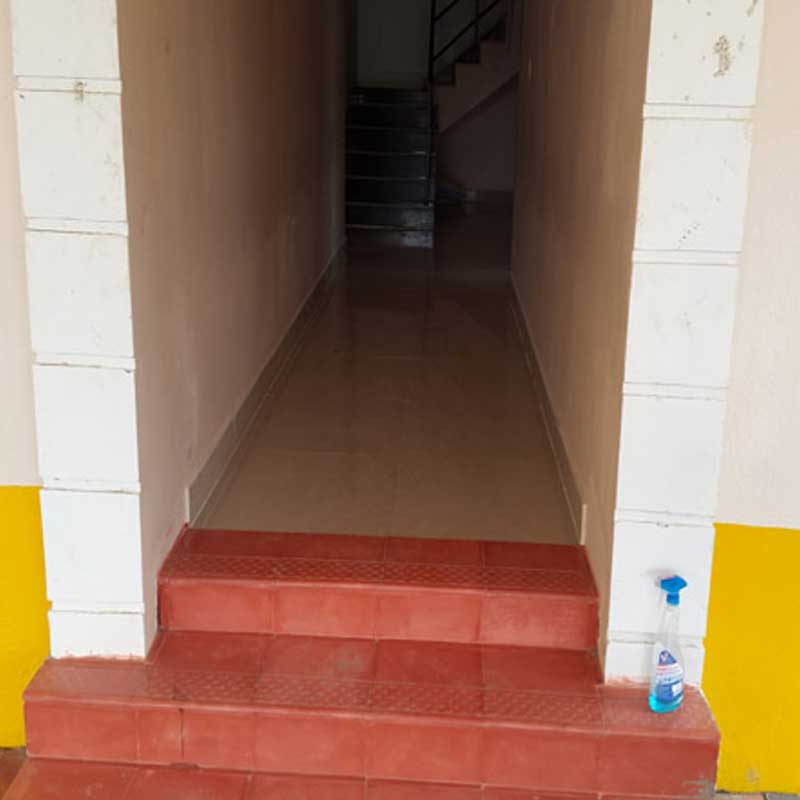

COMMON AREA /STAIR CASE: KOTA POLISHED STONE PROVIDED

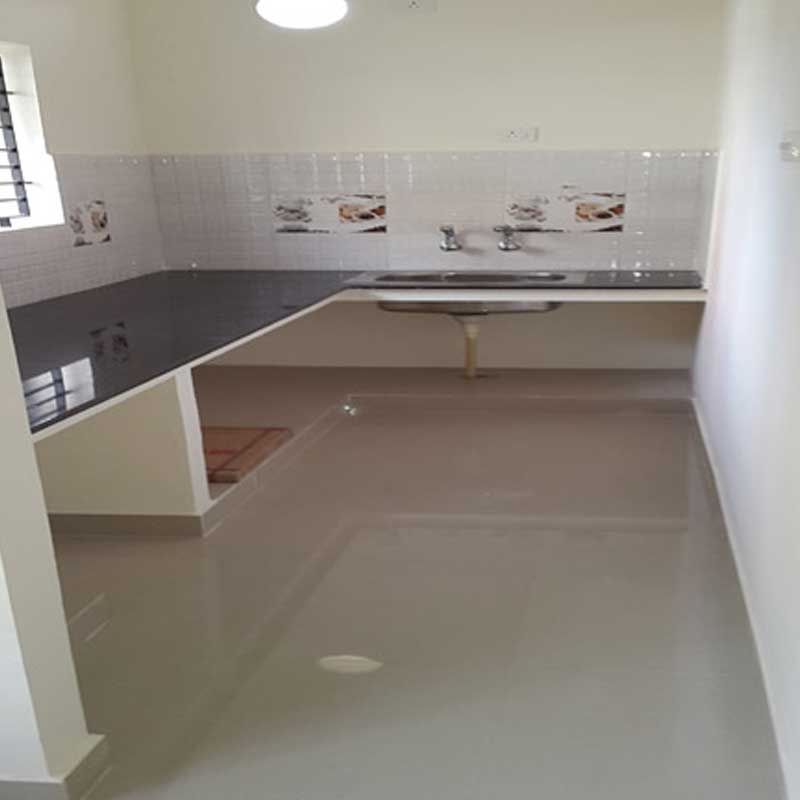

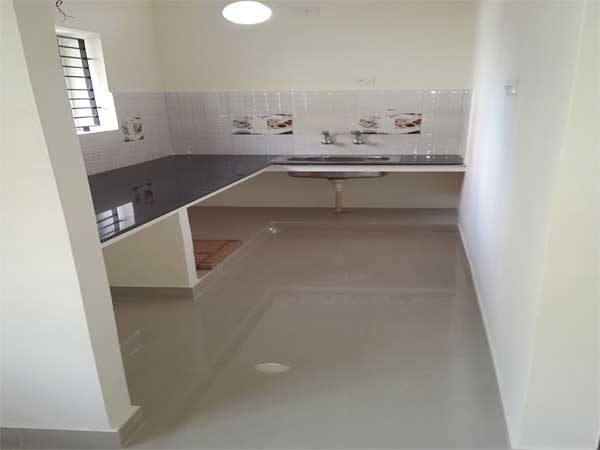

KITCHENWALL:GLAZED TILE UPTO 2FT FROM THE COUNTER LVL
COUNTER : BLCK GRANITE SLAB 2FT WIDTH WILL BE PROVIDED WITH S.S SINK WITH DRAIN BOARD
TOILETS:
WALL TILES: 13X10 concept tiles of good brand used .
FLOOR: 1X1 ANTI SKID
SANITARYWARE:

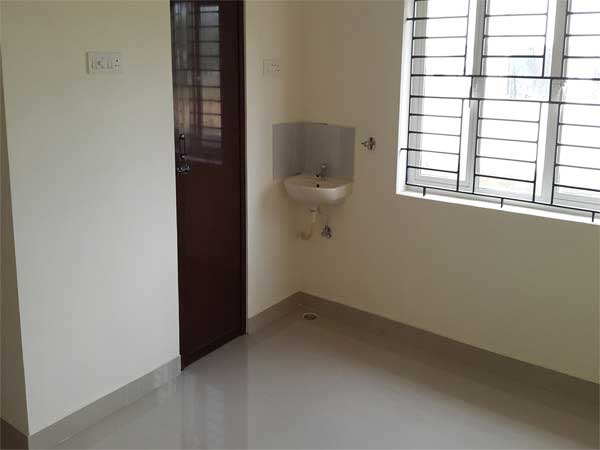

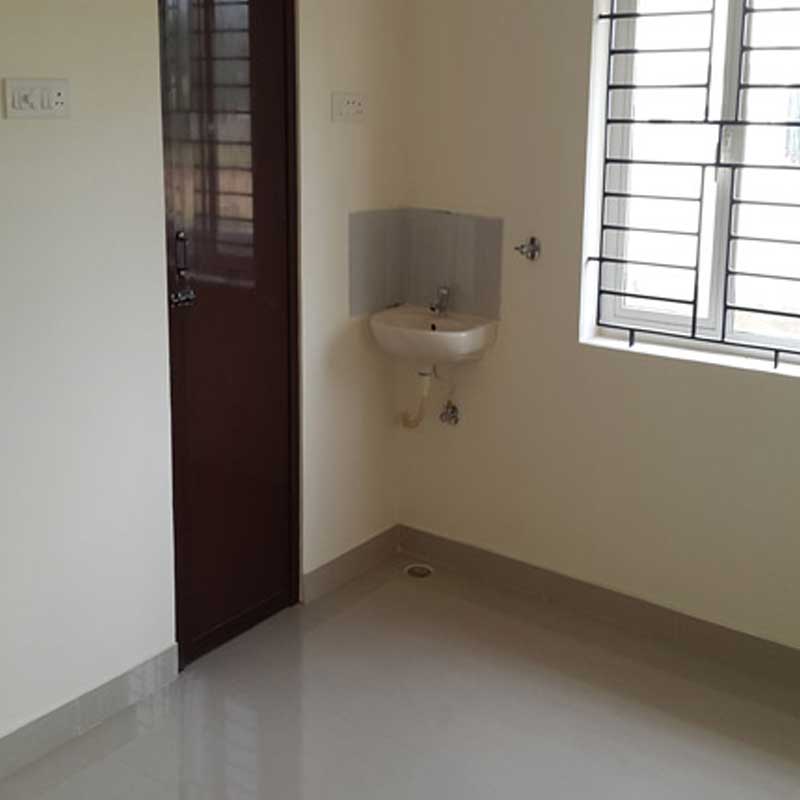

CLOSETS/WASH BASINS: HINDWARE / PARRYWARE SLIMLINE MODEL standard white color (color charges additional) Provision from builder: 1 basin for dining / 1 in master bed room. (Color additional charge)
PLUMBING:
1. Concealed PVC outer pipeline for bathrooms of high quality of schedule kg finolex brand used.
2. CPVC concealed lines in all bathroom for Hot &Cold water ASHIRWAD brand.
3. Sewage pipelines of ISI brand for underground drainage with chamber provision and connected to septic tank.
4. O.H.T wit bore water and Sump water provision
5. Kitchen with Bore water and sump water taps.
6. U.G sump with 12000 liters capacity

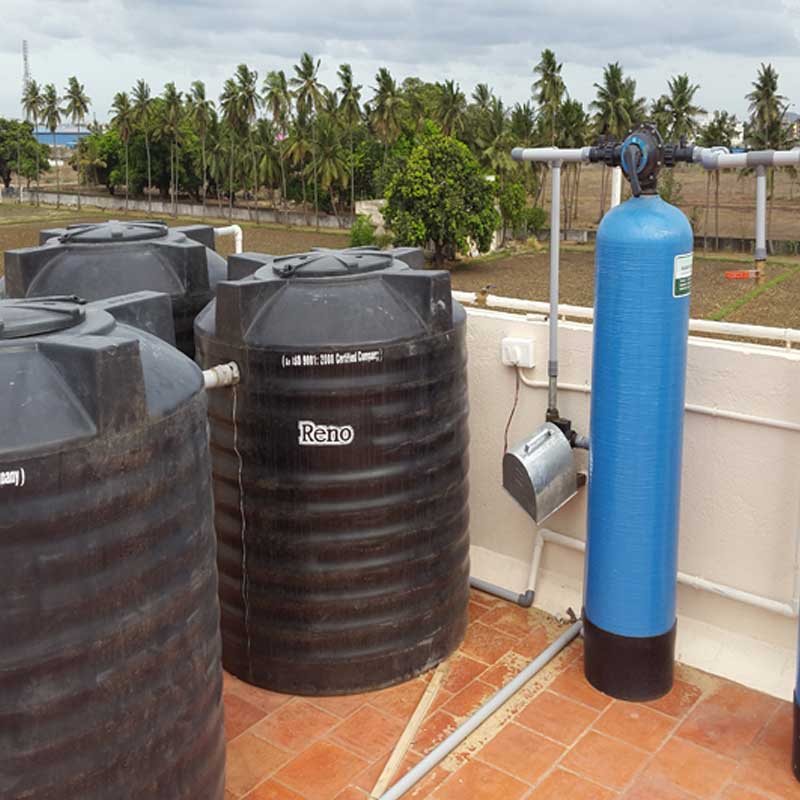

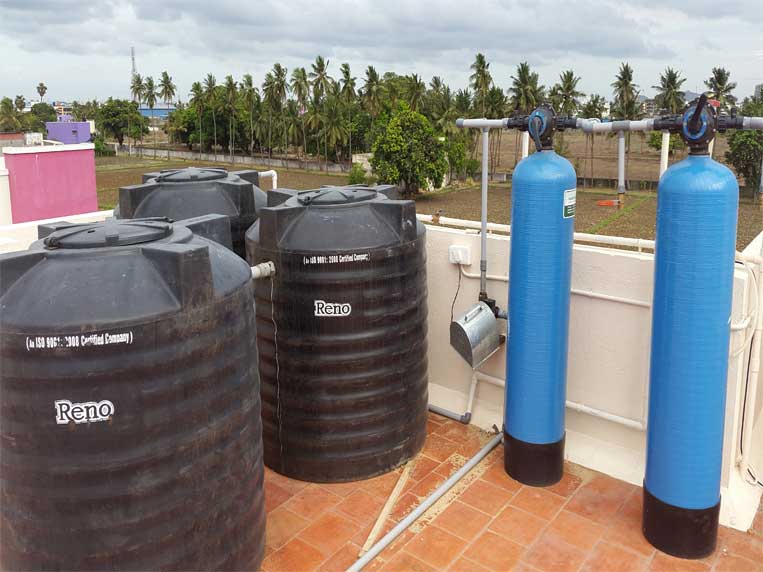

7. O.H.T with 6000 liters capacity
PAINTING:
INNER WALLS: 1 coat with white cement/2coats with Birla putty/1coat with Asian wall primer and final with 2coats with ASIAN tractor emulsion.
OUTER WALLS: ACE exterior emulsion used.
MIAN DOOR: Teak wood polish
Bedroom doors: Enamel painting
Common area:OBD with putty
Window grills: Enamel paint
JOINEIRES:
Main Door: Teak wood frame with imported Malaysian wood shutter with brass hinges and godrej vertibolt 1way lock provision.
Bedroom/service doors: Molded skin door with mortise lock provided.
Bathroom door: PVC single panel hardened provision with lock.
WINDOWS:

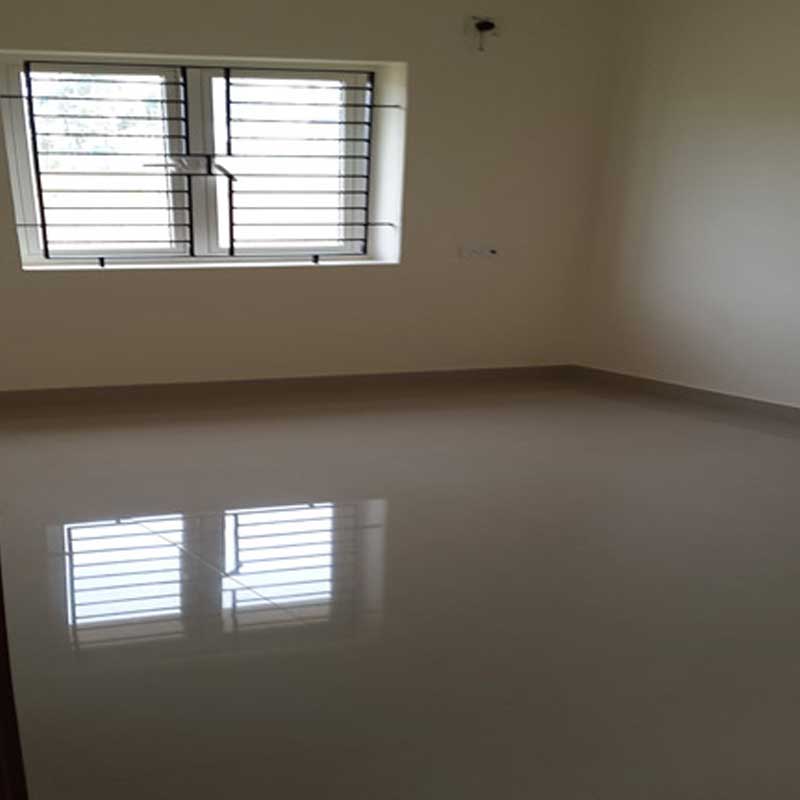

All aluminum casement alutek Upvc style windows provided with 4mm clear glass and handles.
ELECTRICAL::
CABLE: POLYCAB ISI BRAND
SWITCHES: Mk or Litaski modular switches provided.
A/c Provision: In all bed rooms and in hall

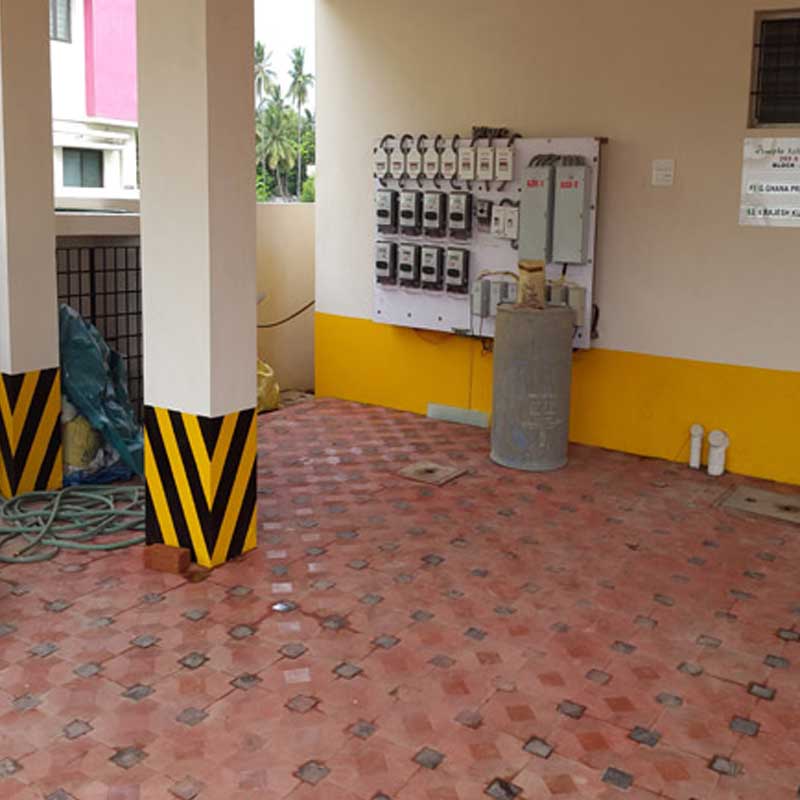

3phase supply with indo asian DB and circuit breakers in all flats.
Power points 15amps for fridge and 2Oamps for A/C
5amps for all other provision.
Communication : Telephone/Internet : Living /MBR
GENERAL:
Terrace: cloth drying wires provision
Staircase&Balcony: As per architect details
CommonArea : CFL light

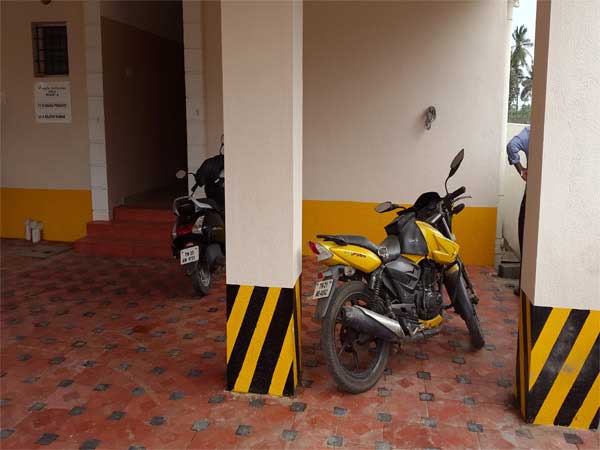

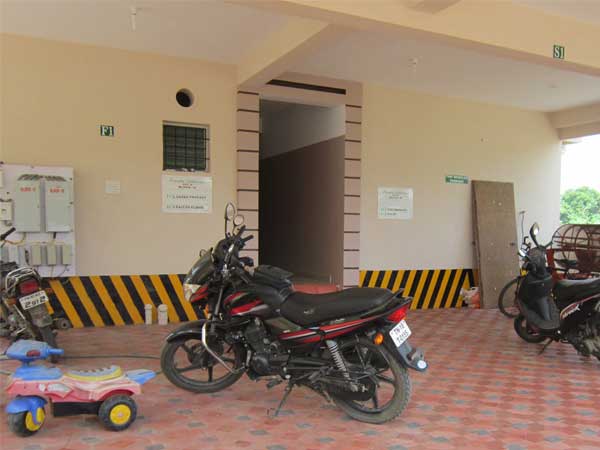

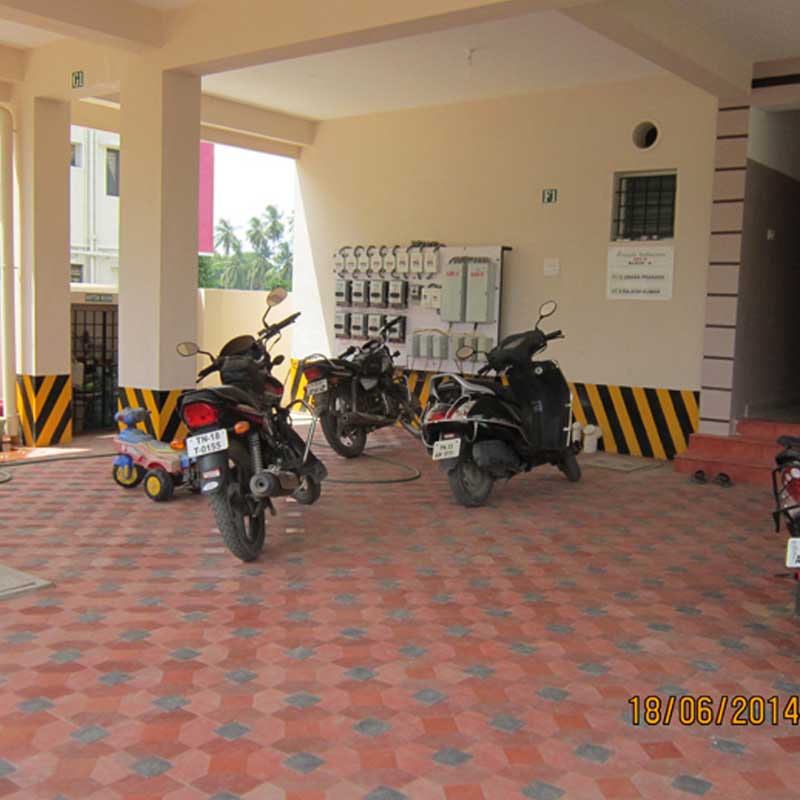

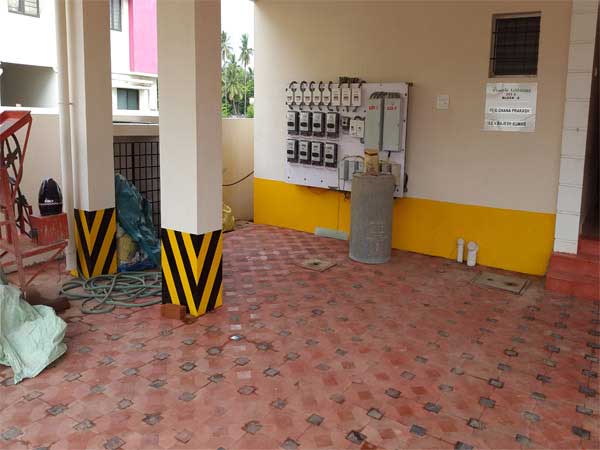

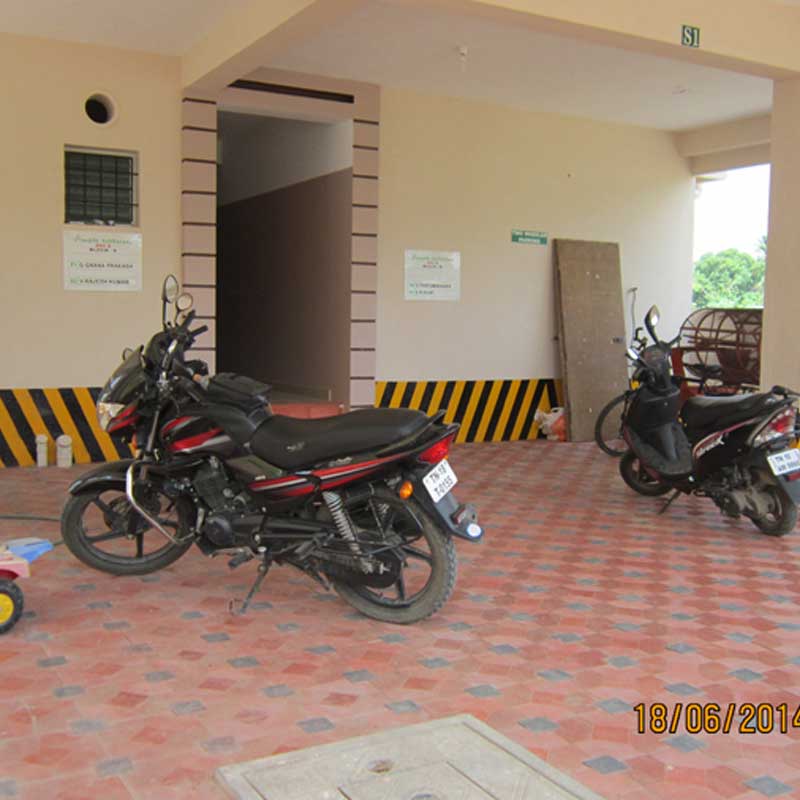

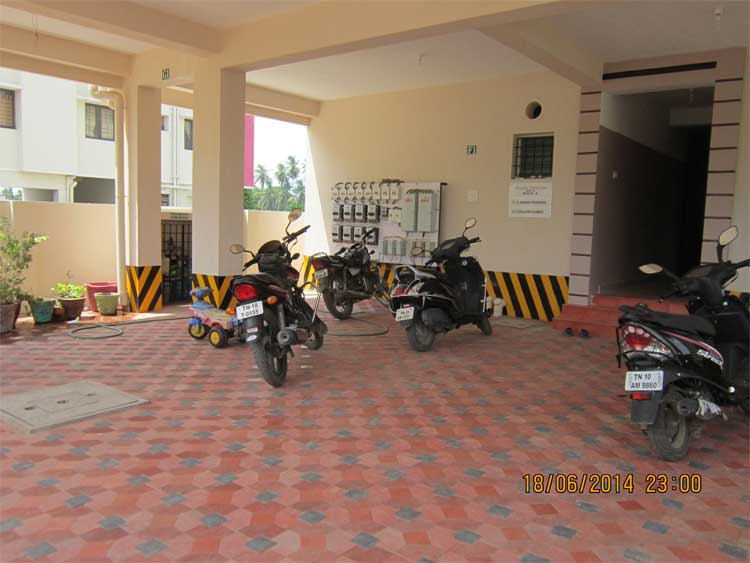

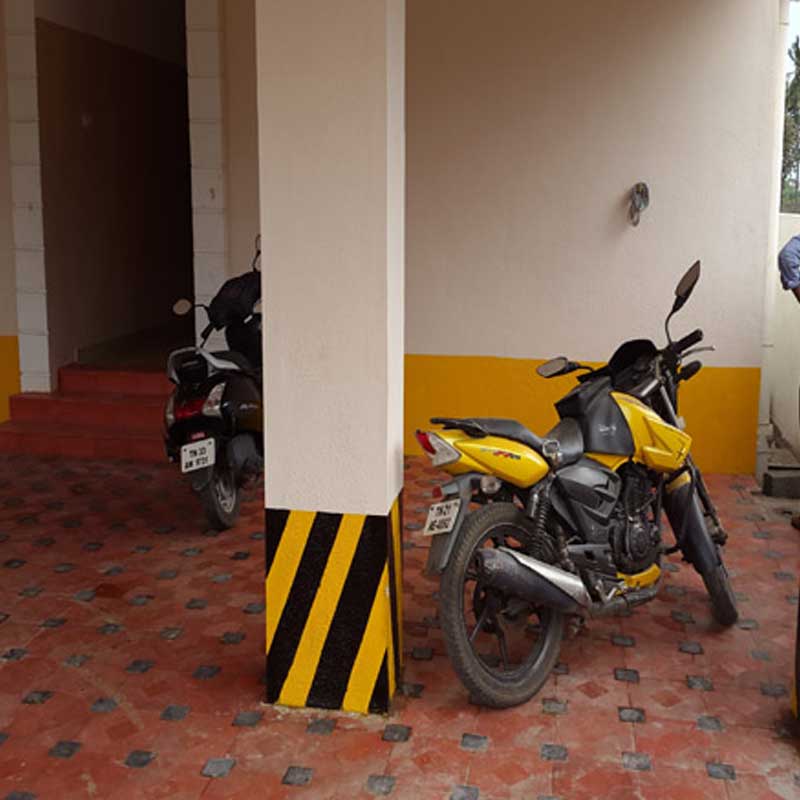

CarPark : Interlocking pavers provided.
Soak pits: For Kitchen and bathing water ,Rainwater harvest
Septic tank :With adequate capacity

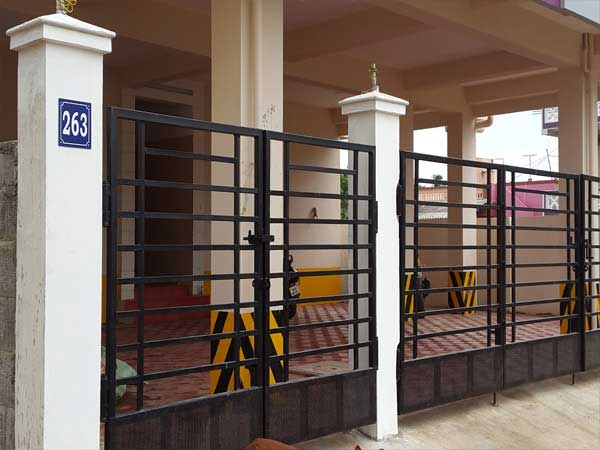

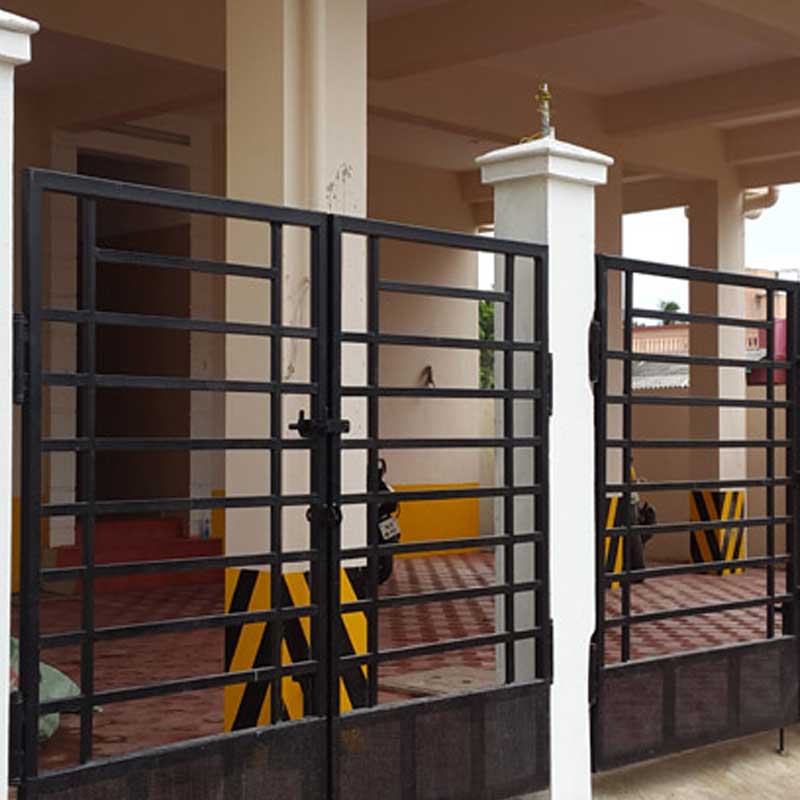

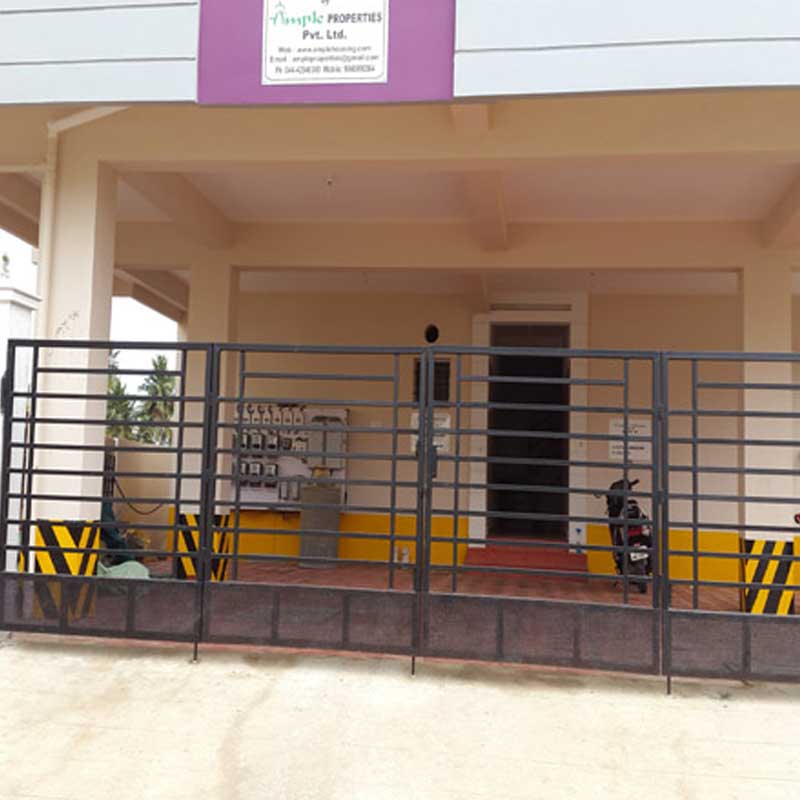

Gate/Name board/Letter box: As per architect details
Extra chargable:Modular kitchen/ extra grills/main door grills
