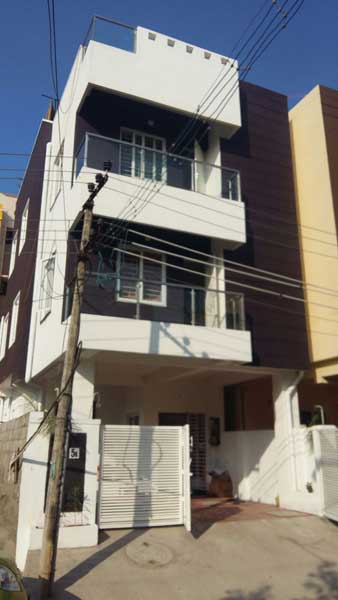

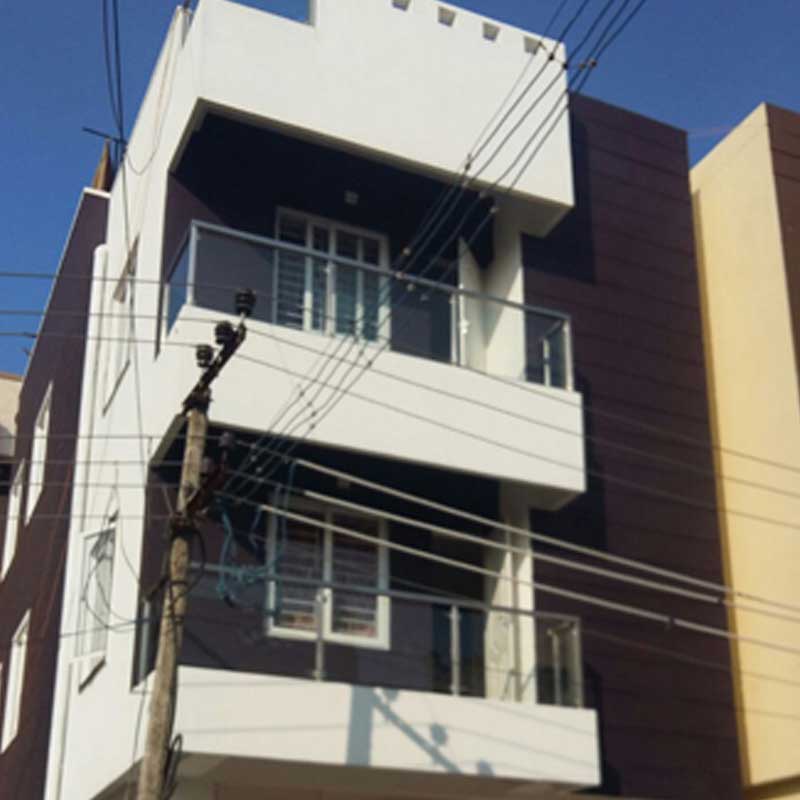

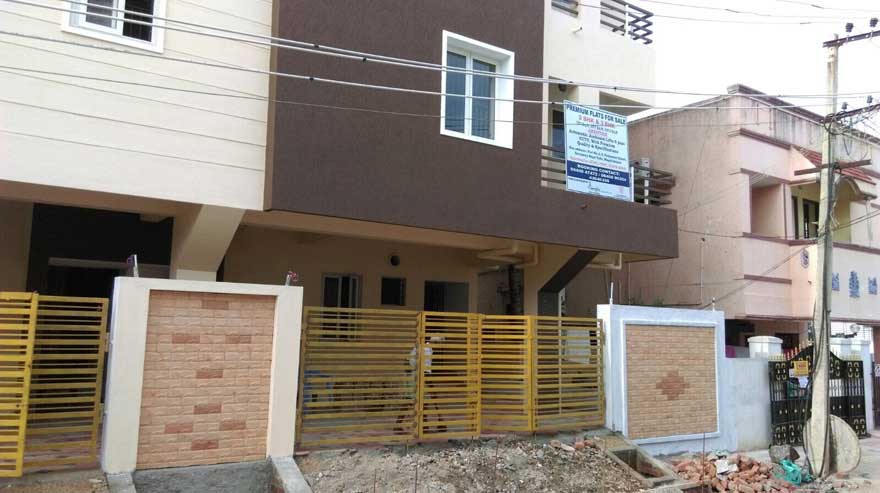

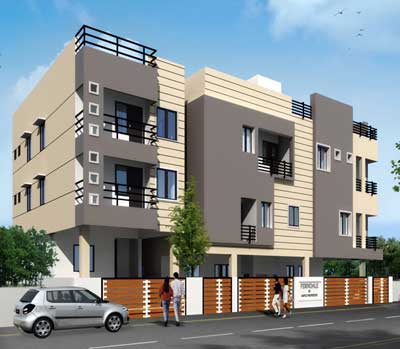

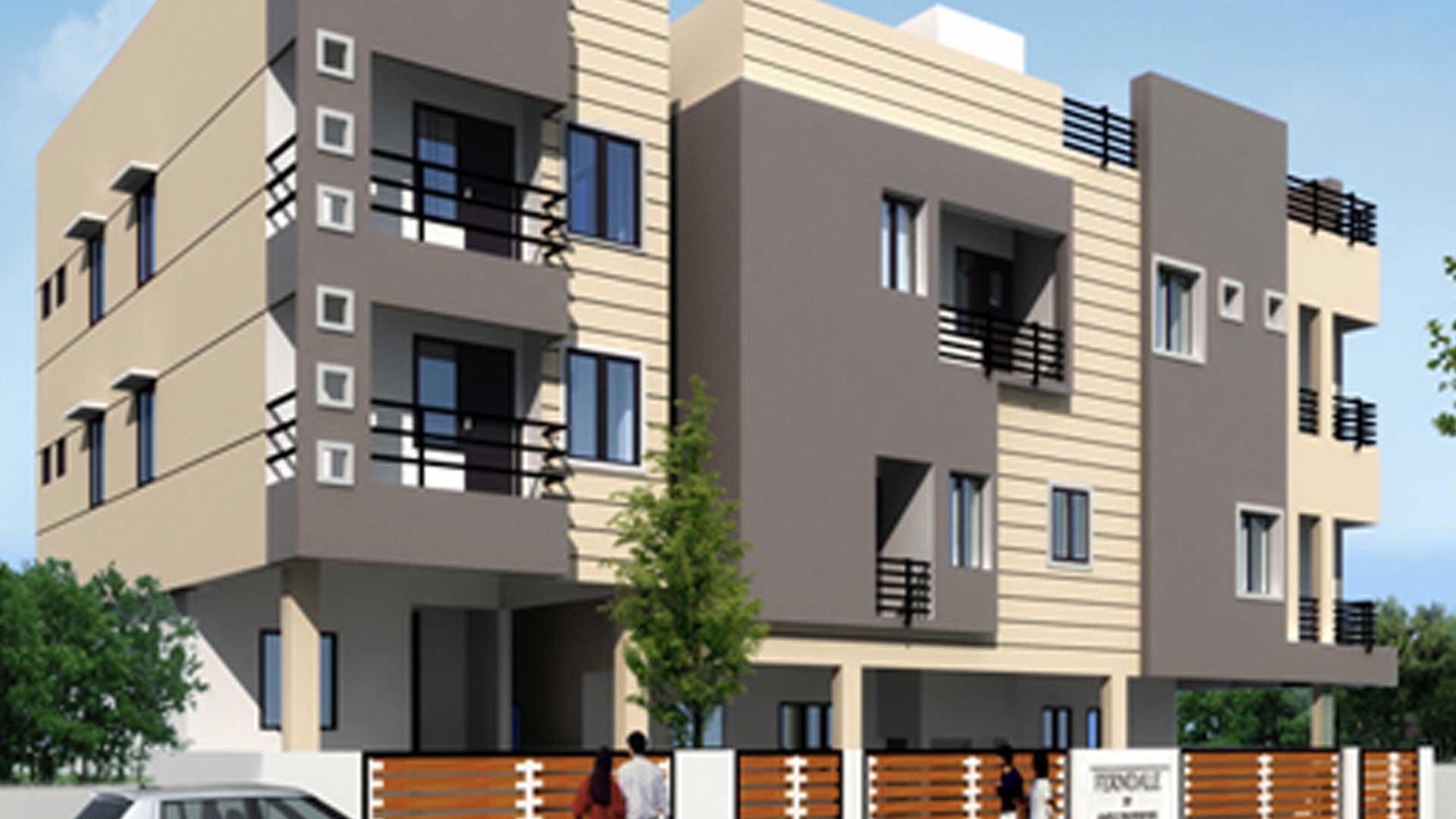

Elevation
Site Address

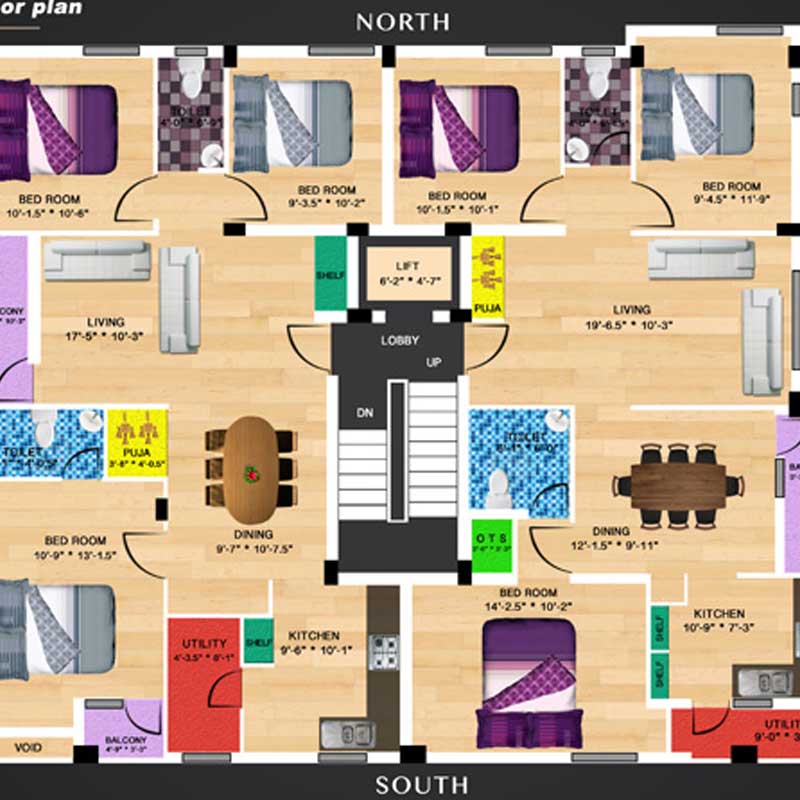

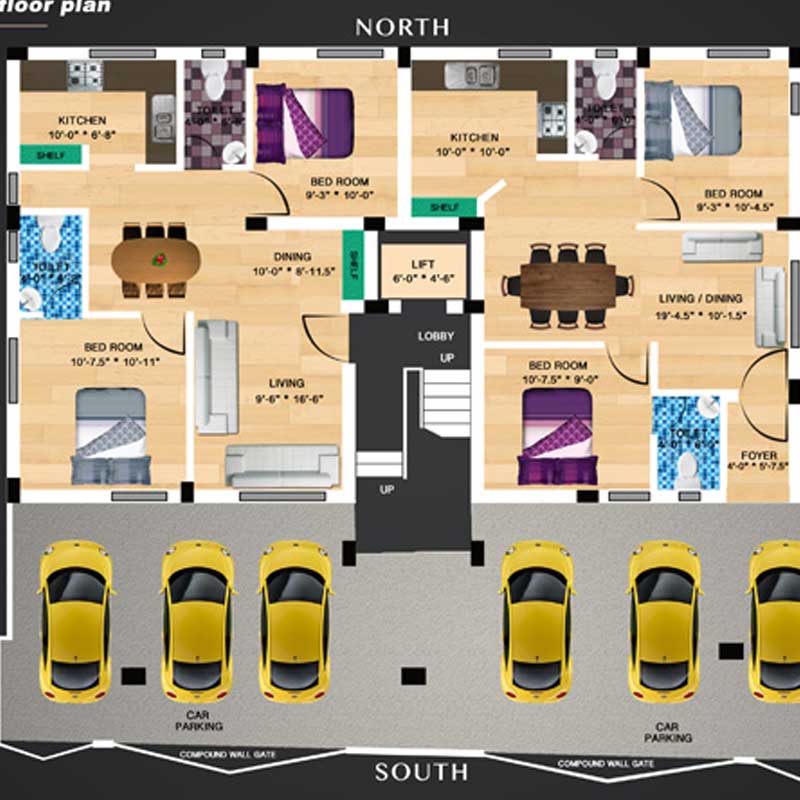

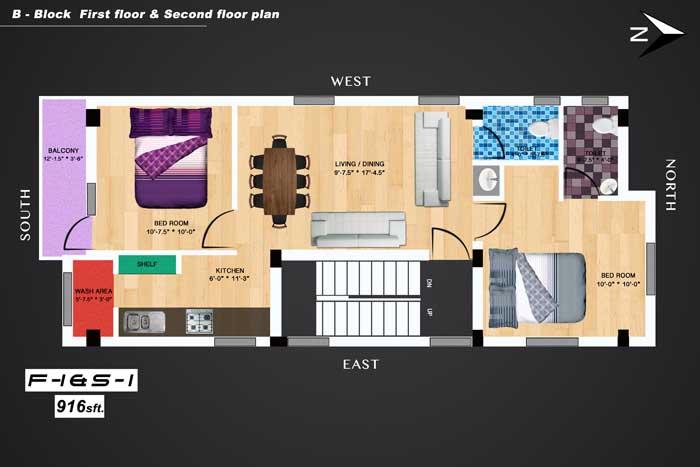

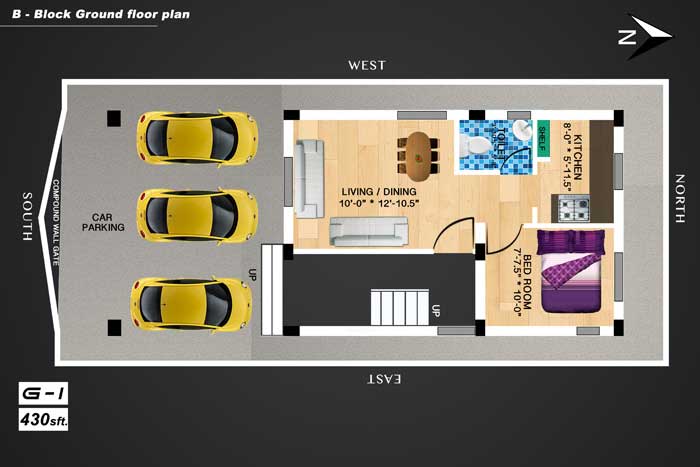

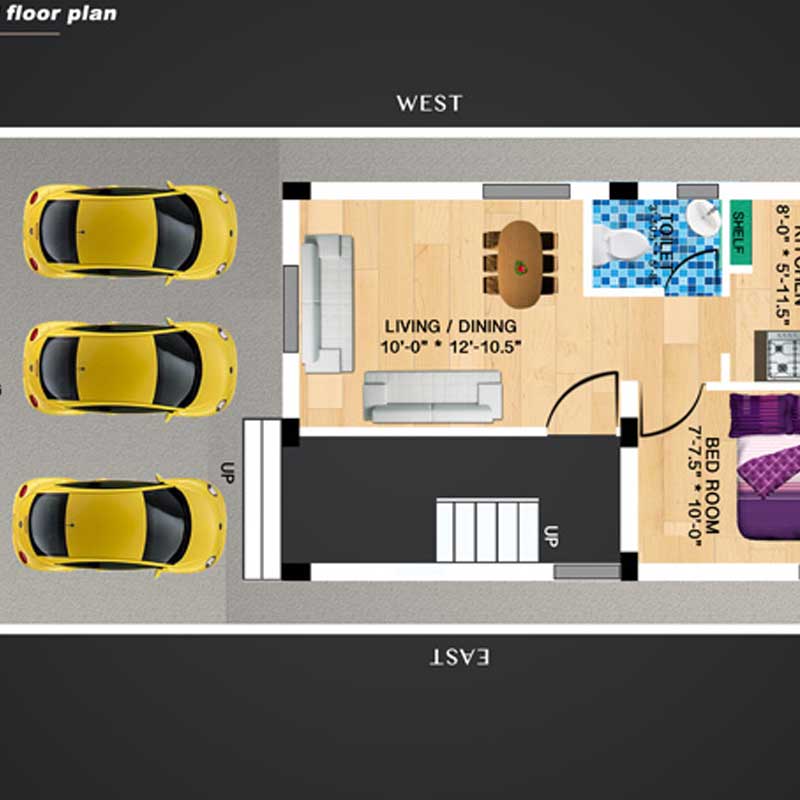

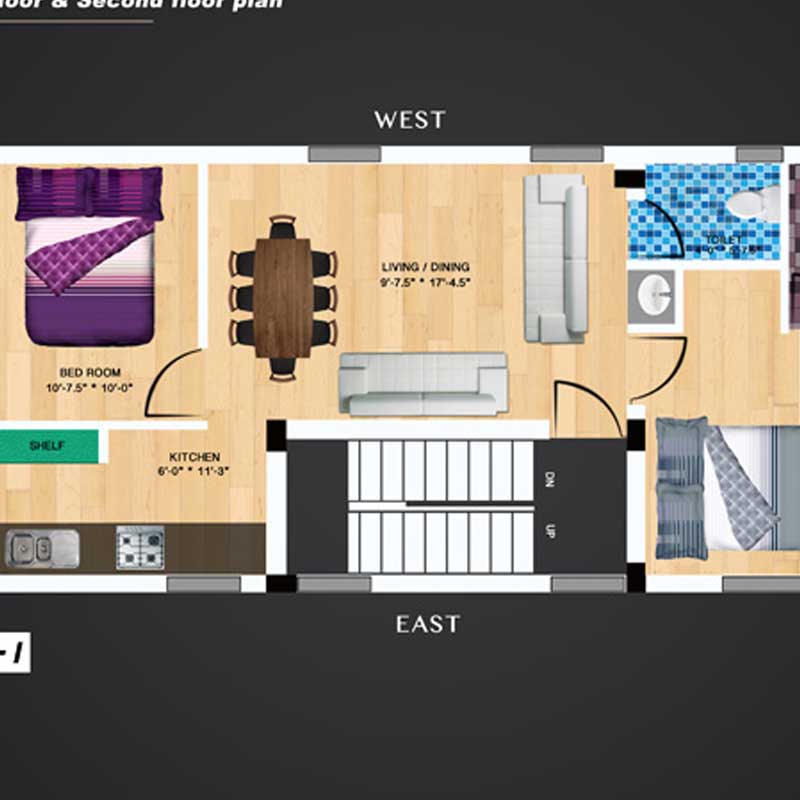

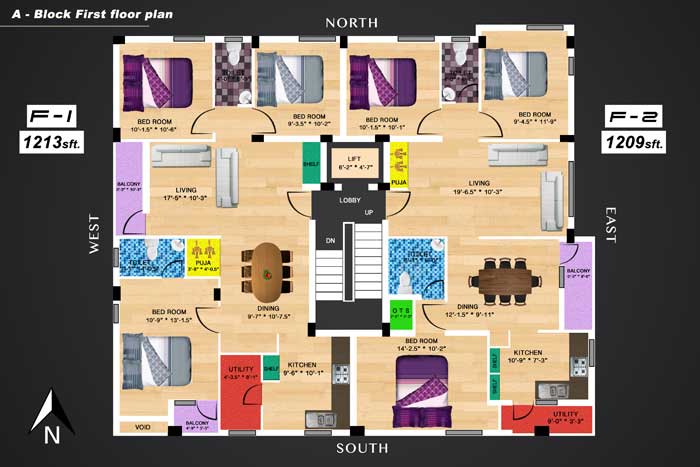

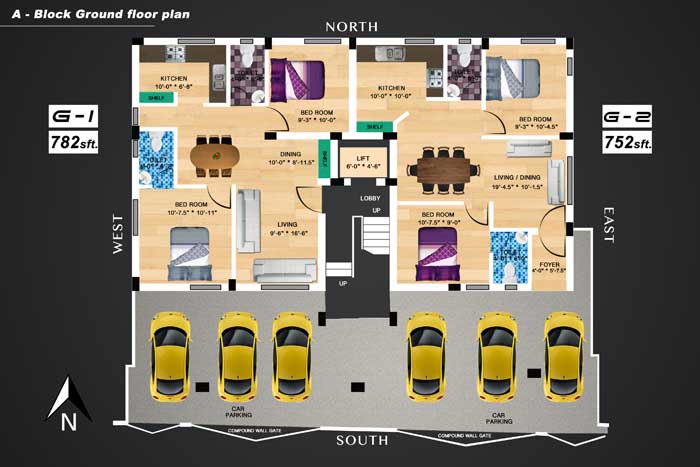

Floor Plans
Specificiation
CIVIL:
1. RCC STRUCTURE WITH EARTHQUAKE RESISTANT SEIZMIC DESIGN code applied.
CONCRETE:
ALL RCC FOOTING/SLAB / BEAM/ COLOUMN are done by machine mix ratio 1:11/2:3 M20 grade concrete with proper side plywood board shuttering bottom Wooden planks and PROPS and span used for centering.
REINFORCEMENT:
STANDARD ISI BRAND WITH FE 500 GRADE USED as per structural detailing in all stages
SOIL TEST:
Foundation done with soil test report according to soil sbc report.
BRICK WORK:
OUTER WALL 8”POROTHERM LIGHT WEIGHTBLOCKS used and thickness with 1:6 RATIO
INNER PARTION WALL 4” POROTHERM LIGHT WEIGHT BLOCKS used thickness 1:4 RATIO using hoop iron mesh in 3ft intervals to avoid wall cracks in future.
ADVANTAGES OF POROTHERM BLOCKS:
1.60% LESS IN WEIGHT
2. SAVINGS ON STEEL AND CONCRETE
3. FASTER IN CONSTRUCTION AND EASY HANDLING
4.45% BETTER THERMAL INSULATION ALLOWS FLOW OF AIR
5. PREVENTS HEAT FROM OUTSIDE.
6. NON TOXIC AND POLLUTION FREE GREEN BUILDING CONCEPT.
7.EASY FOR CUTTING AND CHASING FOR ELECTRICLA AND PLUMBING WORKS
8.HAIR LINE CRACKS ARE MUCH REDUCED IN 4” PARTITION WALLS
LINTEL&LOFTS :
7ft form the floor lvl Loft width 2ft on one side wall will be given (shorter side)
COLOUMN &BEAM :
All column and beam joint chicken mesh provided and all electrical junctions mesh will be given.
Flooring:

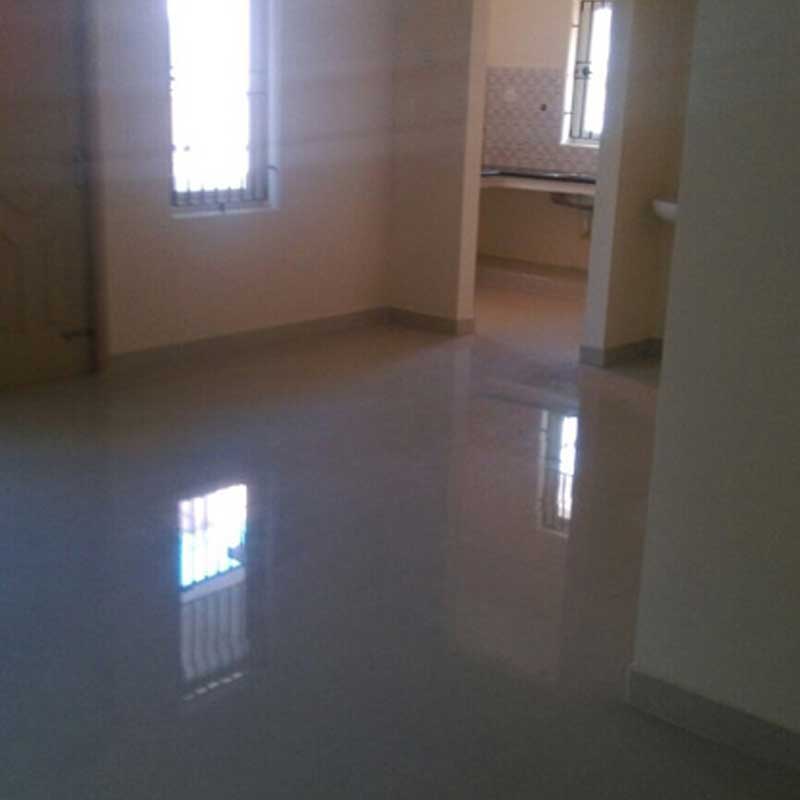

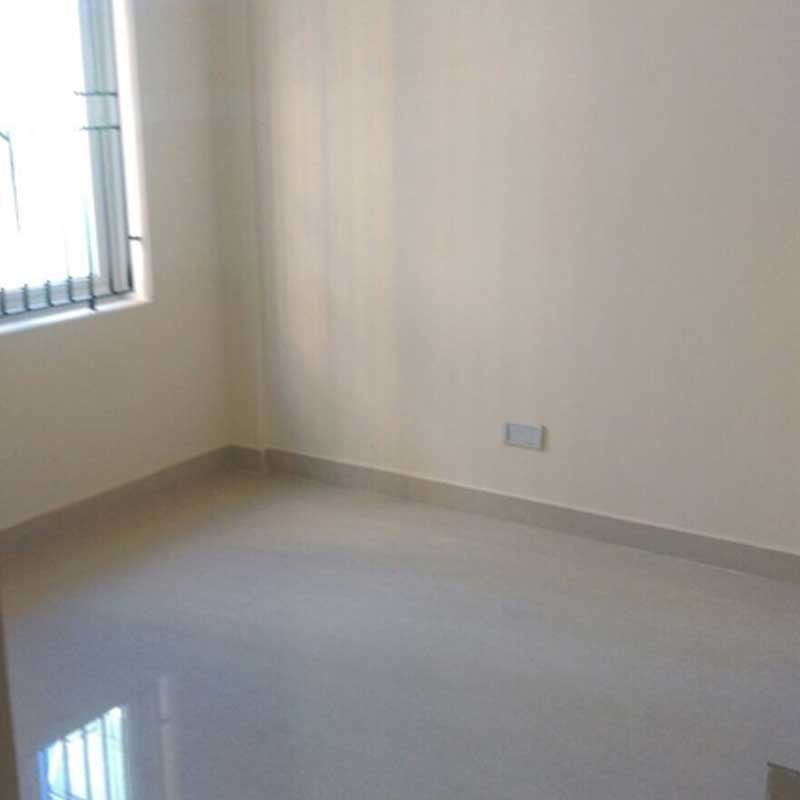

LIVING/DINING/KITCHEN: VIRTRIFIED NANO STAIN FREE TILE OF GOOD BRAND 2X2
LOBBY: GRANITE OR MARBLE PROVISION

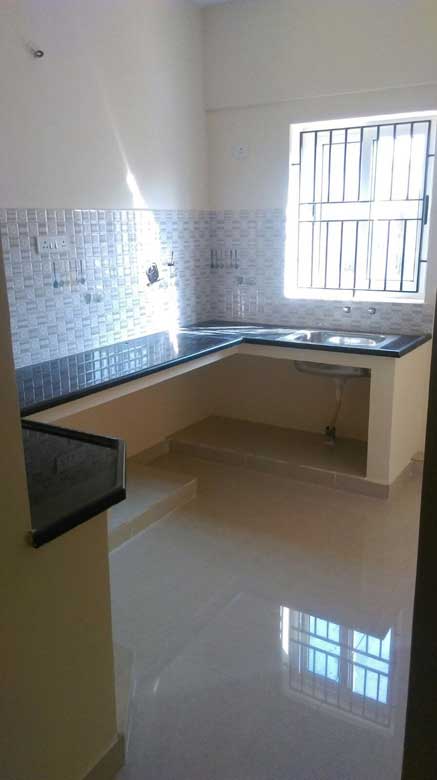

KITCHENWALL: GLAZED TILE UPTO 3FT FROM THE COUNTER LVL

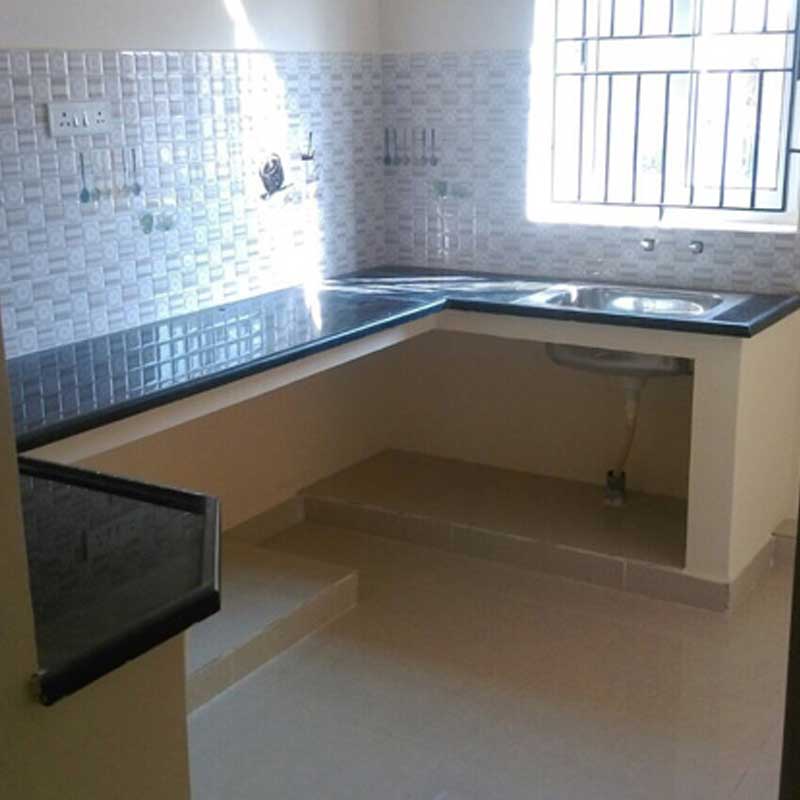

COUNTER: BLACK GRANITE SLAB 2FT WIDTH WILL BE PROVIDED WITH S.S SINK WITH OR WITHOUT DRAIN BOARD.
NEAR TO ALL MAJOR LOCALITIES

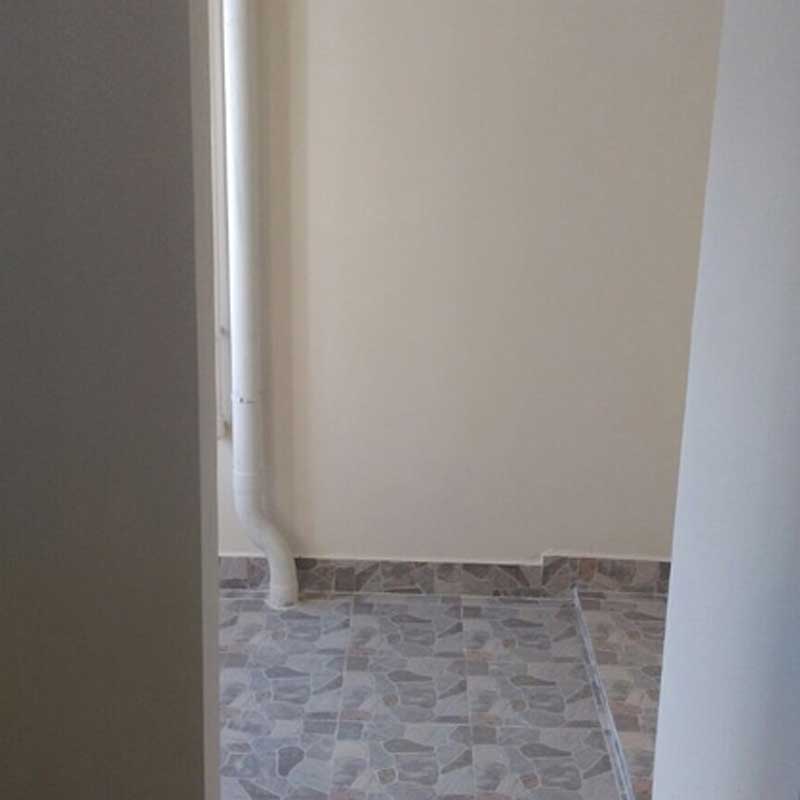

TOILETS:
WALL TILES: 13X10 concept tiles of reputed brand Johnson or equivalent to be used tiling to be done up to ceiling height for all toilets.

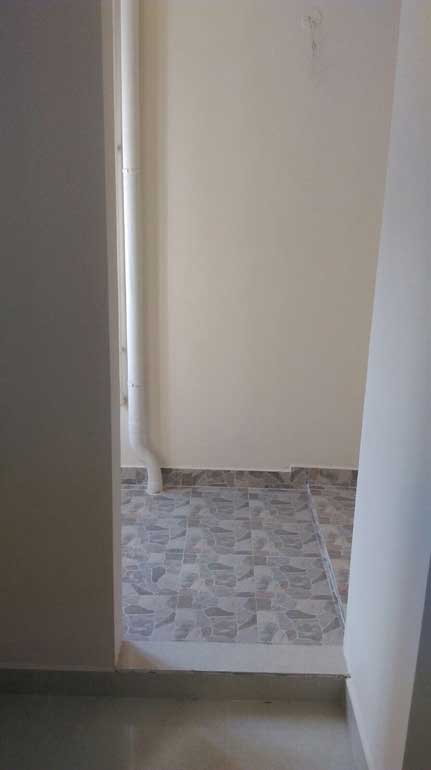

FLOOR: FLOOR: 1X1 ANTI SKID
SANITARYWARE:CLOSETS/WASH BASINS:
HINDWARE / PARRYWARE
SLIMLINE MODEL standard white color (color charges additional)

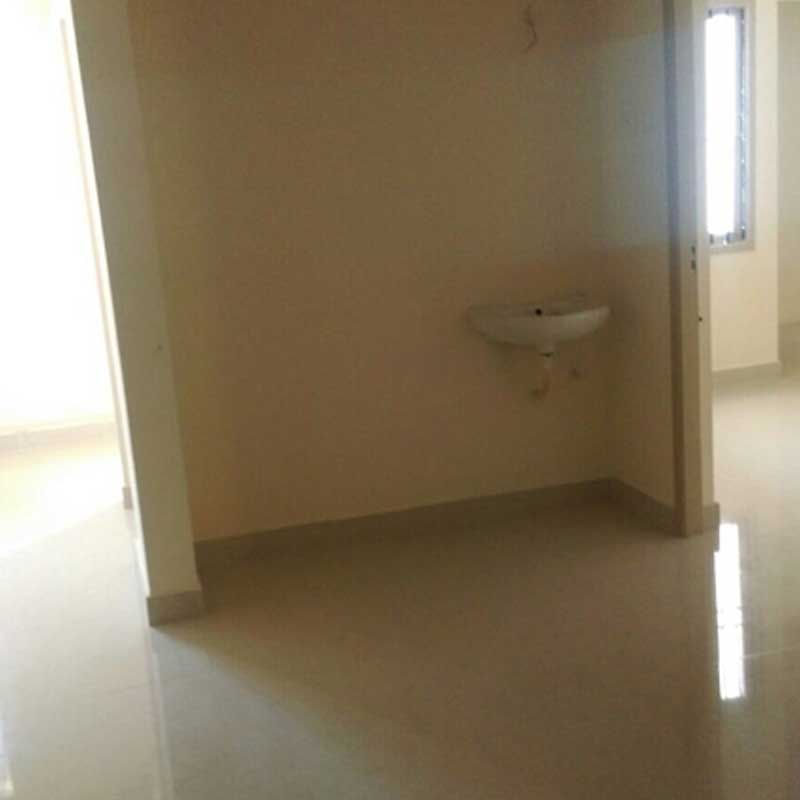

Provision from builder: 1 basin for dining / 1 in master bed room. (Color additional charge)
PLUMBING:
1. Concealed PVC outer pipeline for bathrooms of high quality of schedule kg finolex brand used.
2. CPVC concealed lines in all bathrooms for Hot &Cold water ASHIRWAD brand used
3. Sewage pipelines of ISI brand for underground drainage with chamber provision and connected to septic tank.
4. O.H.T witH bore water and Sump water provision
5. Kitchen with Bore water and sump water taps.
6. U.G sump with 12000 liters capacity
7. O.H.T with 6000 liters capacity
WATER PROOFING:
1. All bathrooms are treated by waterproofing chemical properly cleaned and treated in the inlet and all out let joints to avoid and protect leakage in roof for future.

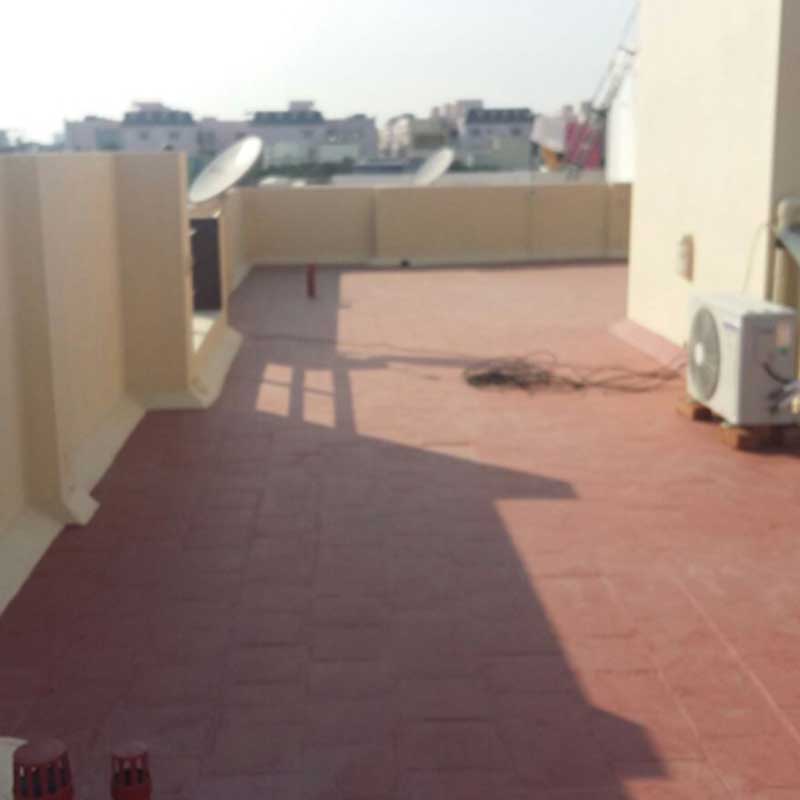

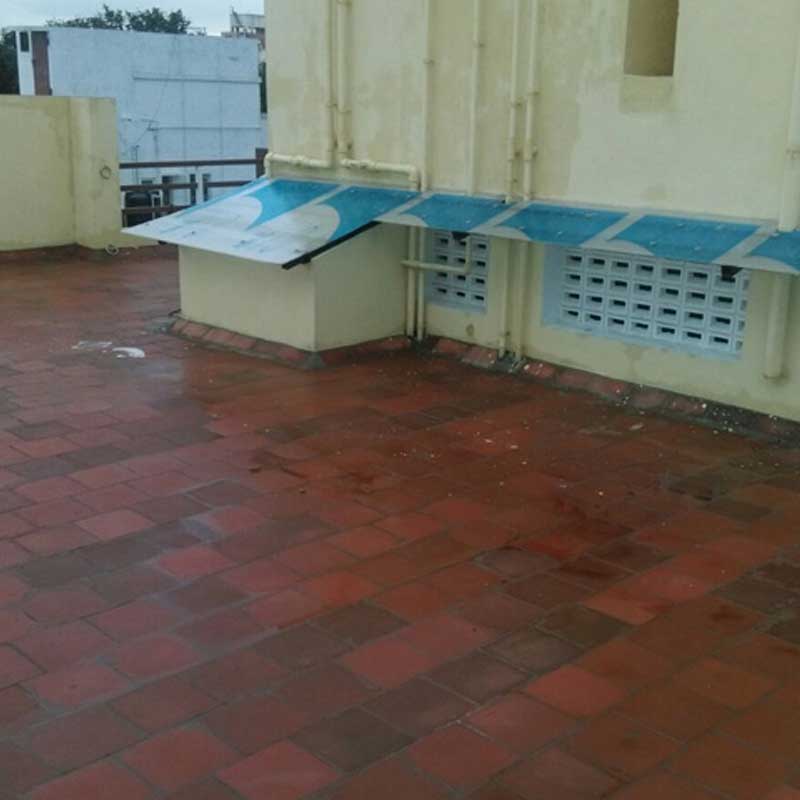

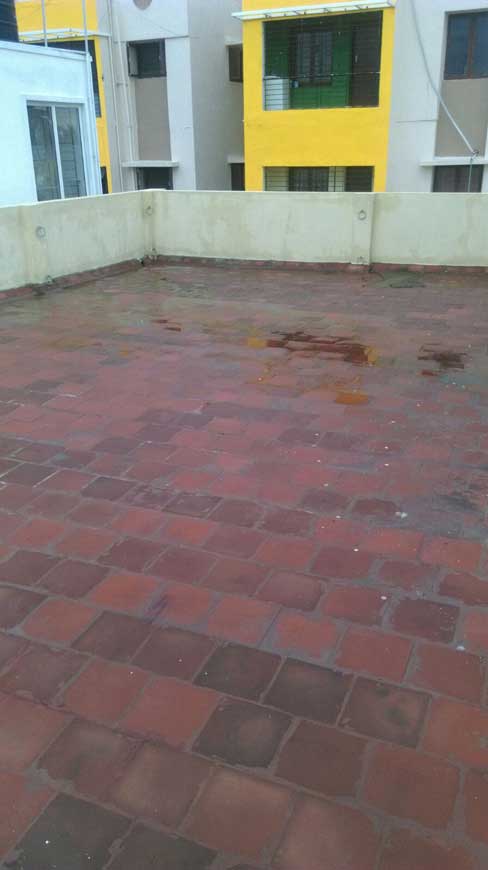

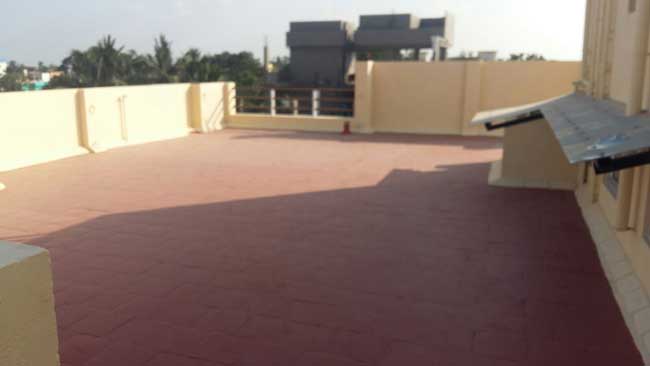

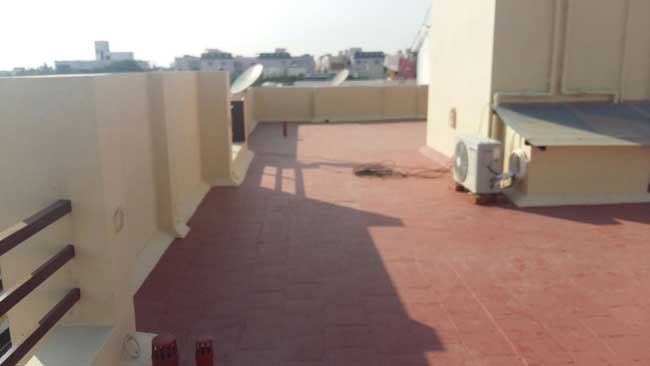

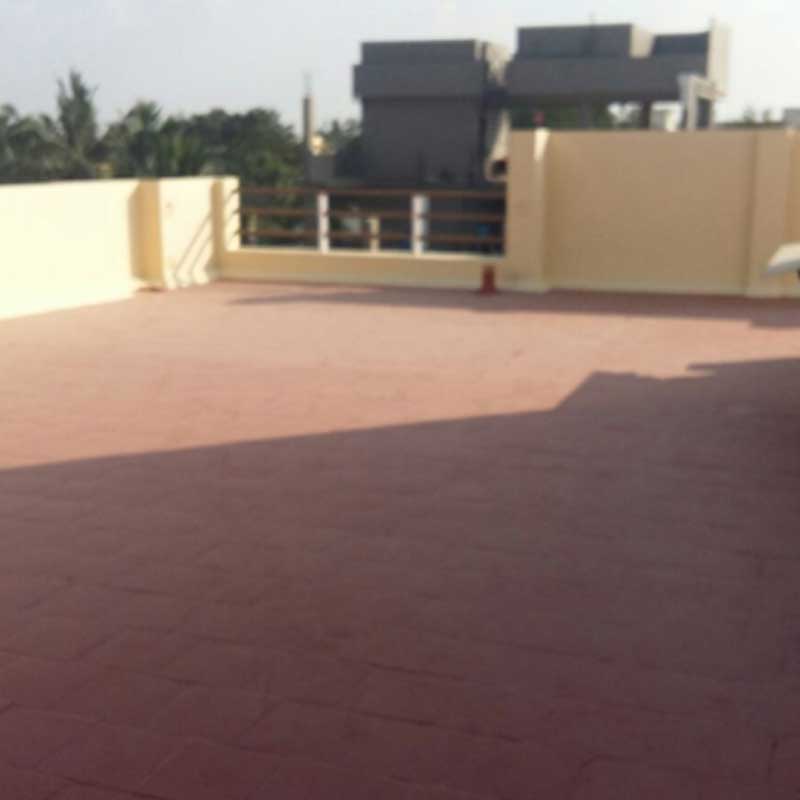

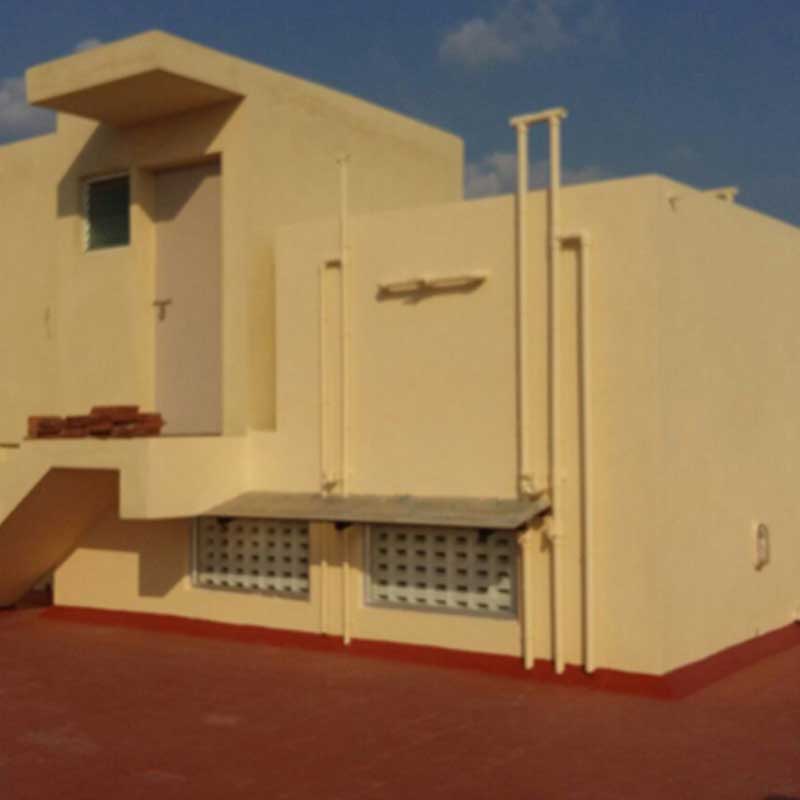

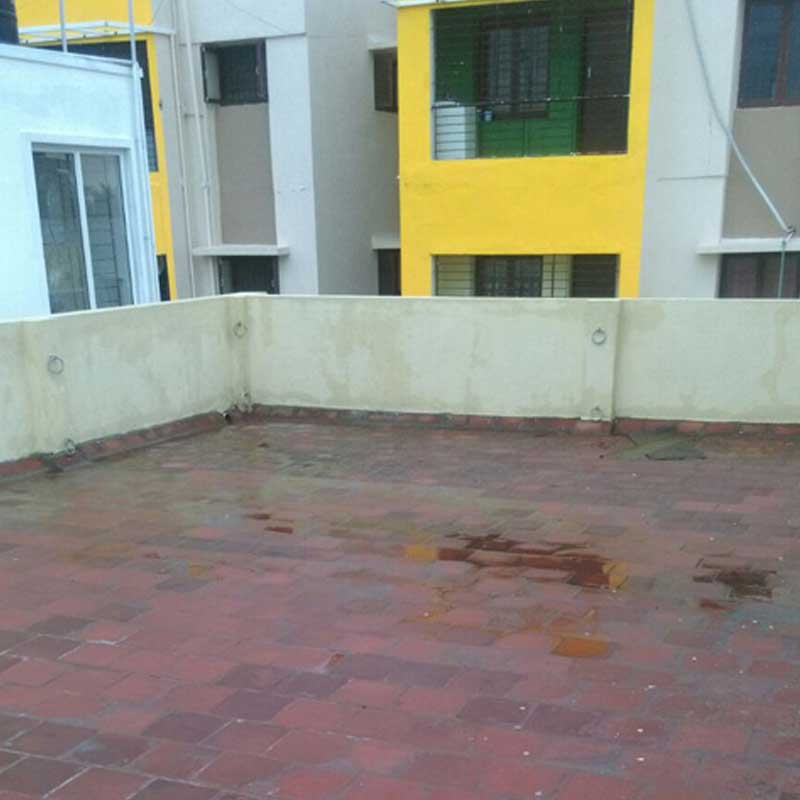

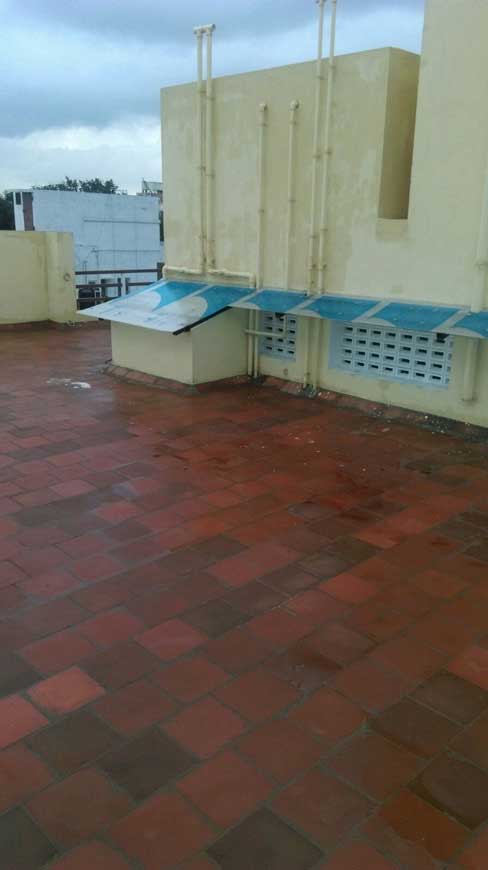

2. Terrace is also treated by waterproofing to avoid leakage and heat protection tiles provided. Mangalore 1st quality tiles.
3. U.G SUMP for both blocks and septic tank bottom part water proofed.
4. Lift Pit Water proofed.
PAINTING:
INNER WALLS: 1 coat with white cement/2coats with Birla putty/1coat with Asian wall primer and final with 2coats with ASIAN tractor emulsion.
OUTER WALLS: ACE exterior emulsion used.
MIAN DOOR: Teak wood polish
Bedroom doors: Enamel painting
Common area:OBD with putty finishing and emulsion painting done.
Window grills: Enamel paint
JOINEIRES:
Main Door: Main Door: Teak wood frame with imported Malaysian wood shutter with brass hinges and godrej vertibolt 1way lock provision.
Bedroom/service doors:Bedroom/service doors: Molded skin door with mortise lock provided.

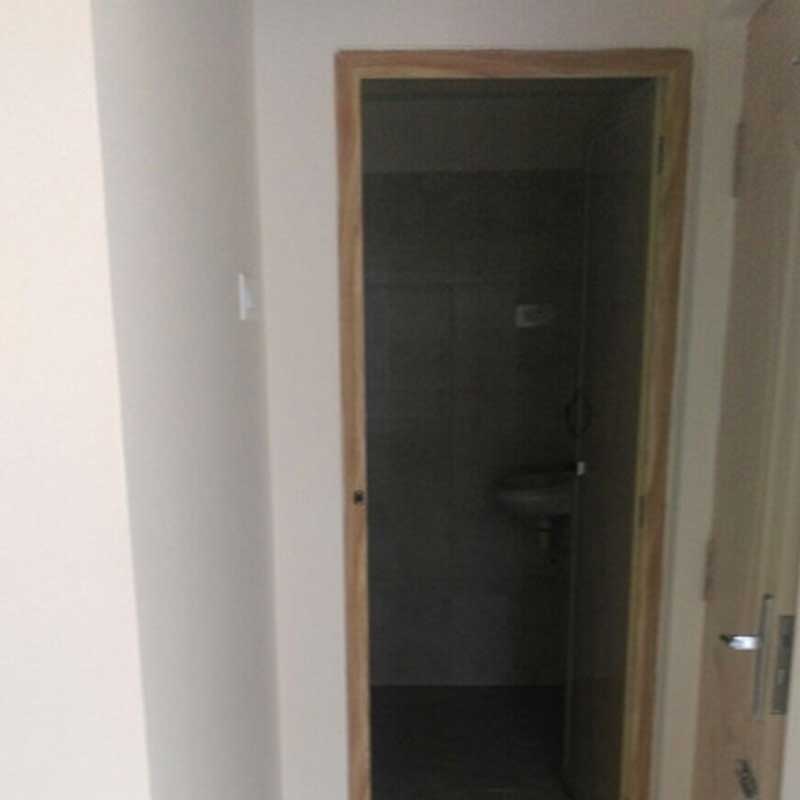

Bathroom door: Bathroom door: PVC single panel or Water proof ply wood shutters with frame hardened provision with door handle provided.
Common area Railing: MS design or Stainless steel hand rails provided.
WINDOWS:
All aluminum casement alutek Upvc style windows provided with 4mm clear glass and handles.
ELECTRICAL:
CABLE: POLYCAB wires ISI BRAND
SWITCHES: Mk or Litaski modular switches provided.
A/c Provision: In all bed rooms and in hall provided.
3PHASE SUPPLY WITH INDOASIAN CIRCUIT BREAKERS
Power points 15amps for fridge and 20amps for A/C
5amps for all other provision.
Communication : Telephone/Internet: Living /MBR
LIFT:

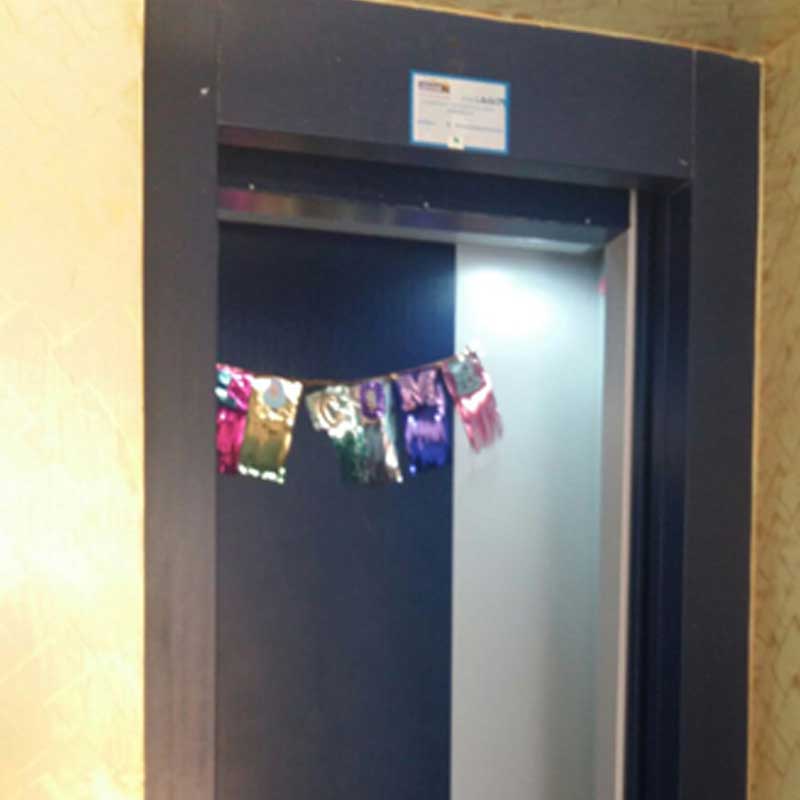

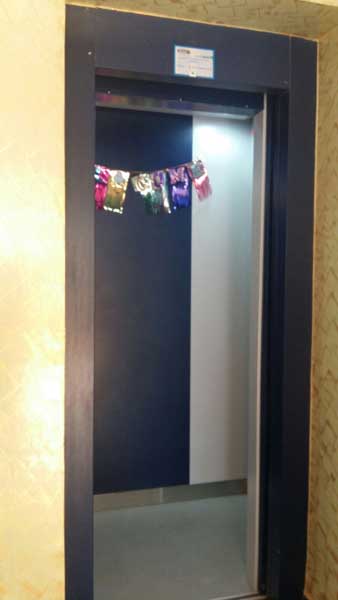

Johnson Automatic double door opening with VF-3drive auto battery backup with 6passenger capacity only for Block A with 6 Flats.
QUALITY CONTROL:
• Site supervisor is present throughout the project and carefully executes the work with prior quality check.
• A site consultant also checks the supervisor performance and verifies the quality on weekly basis.
• Architect site visits done in all stages.
• All structural details are checked by structural engineers before the respective concrete stagewise.
TEST REPORT:
In concrete works cube test taken for 7 & 28 days respectively and quality of concrete checked with external agency by doing compressive strength and report available at sites.
SLUMPCONE test is performed on the day of mass concrete for ROOFSLAB/BEAM/FOOTING/COLOUMN
AMENITIES:
JOHNSON AUTOMATED OPENING LIFT PROVISION ONLY IN BLOCK A -6units
CCTV IN STILT FLOOR LOBBY ENTRANCE- BLOCK A- 6units
2 BLOCKS BLOCK A- 6UNITS / BLOCK B = 2UNITS
CORPORATION APPROVAL for 8units.
INVERTER WIRING IN BUILT IN ALL FLATS
POSH LOCALITY
QUALITY ASSURED CONSTUCTION
GENERAL:

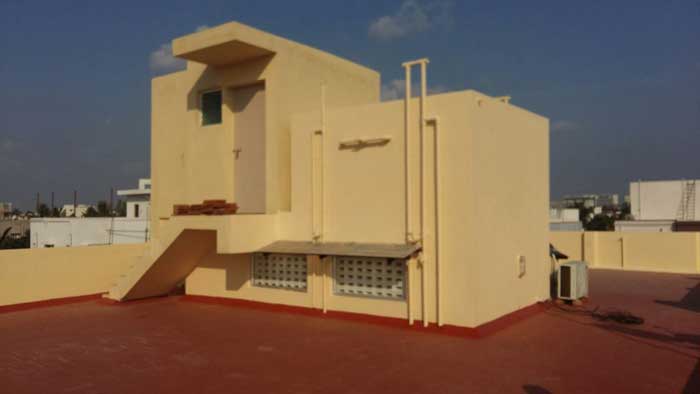

Terrace: cloth drying wires provision

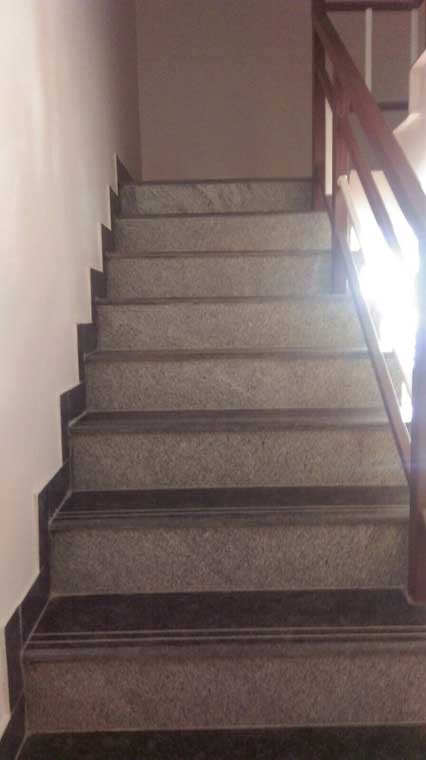

Staircase Balcony:As per architect details.
CommonArea : CFL light

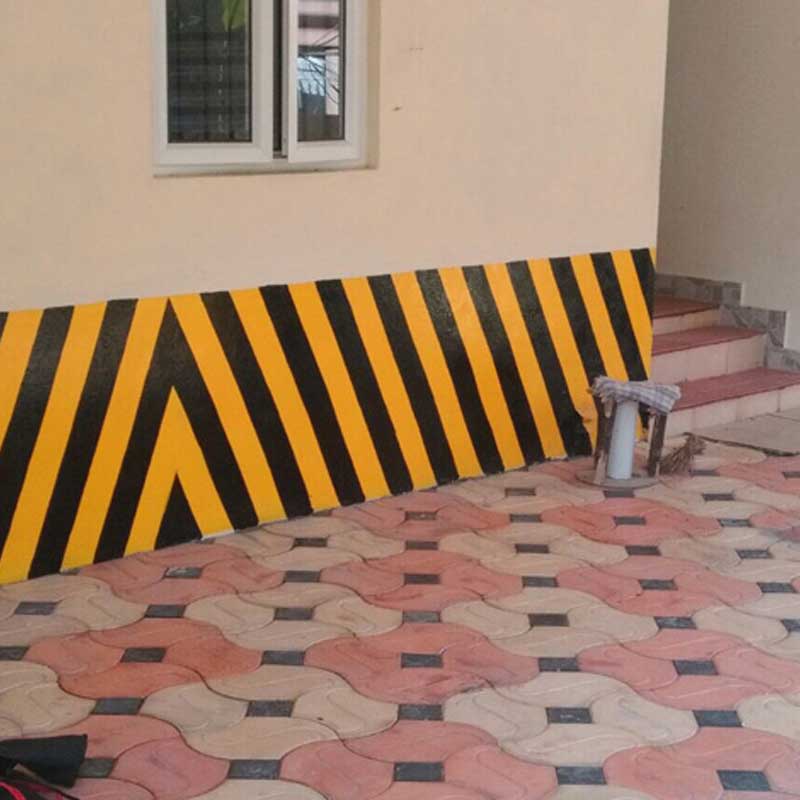

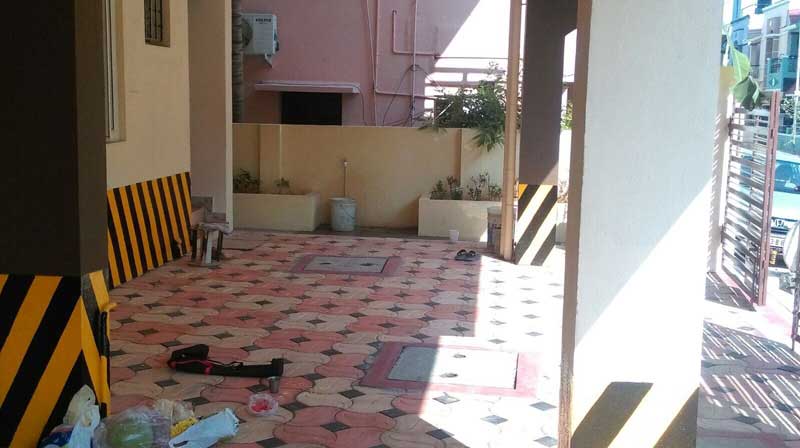

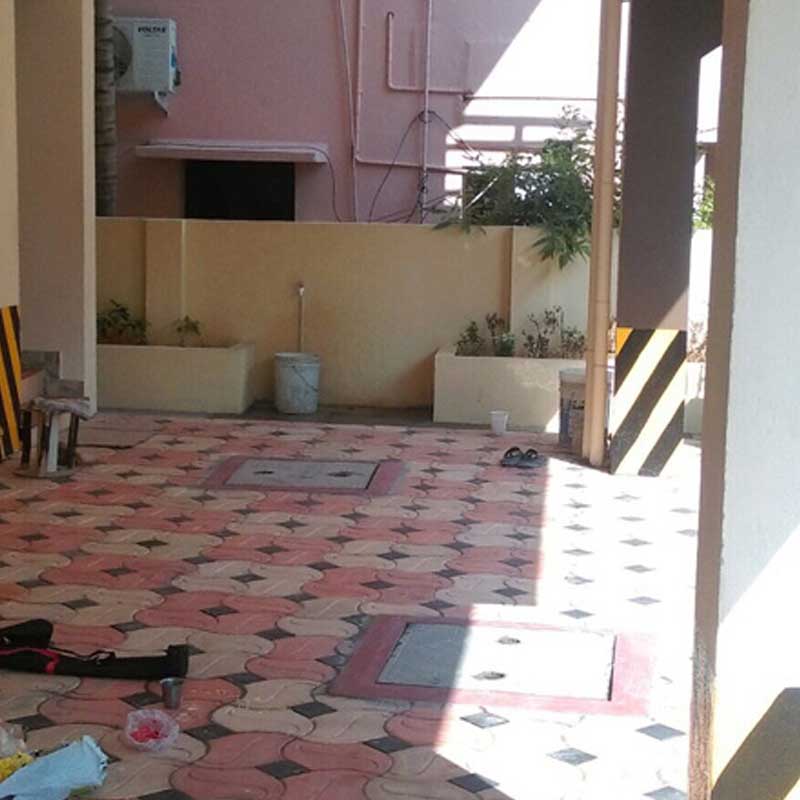

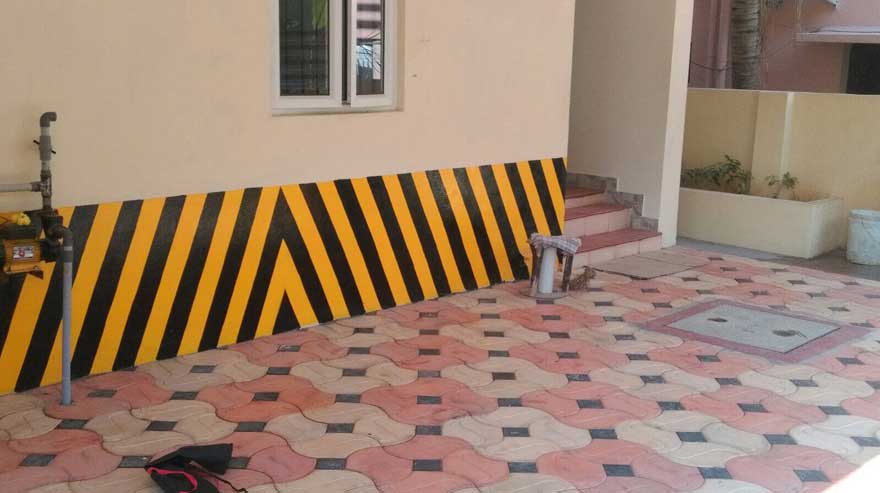

CarPark : Interlocking pavers provided.
Soak pits: For Kitchen and bathing water ,Rainwater harvest
Septic tank :With adequate capacity

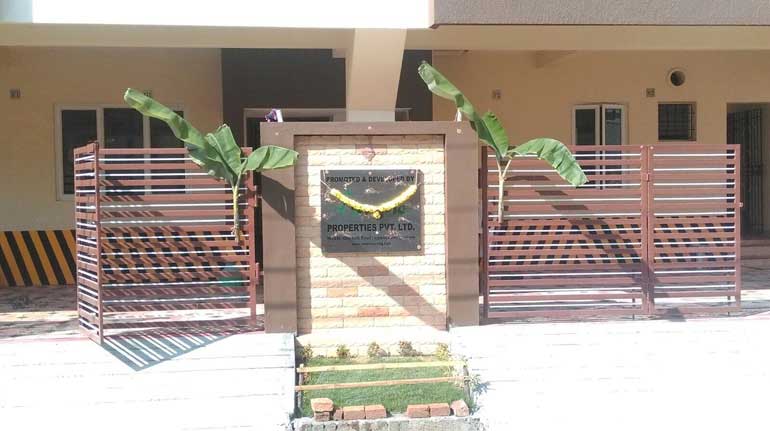

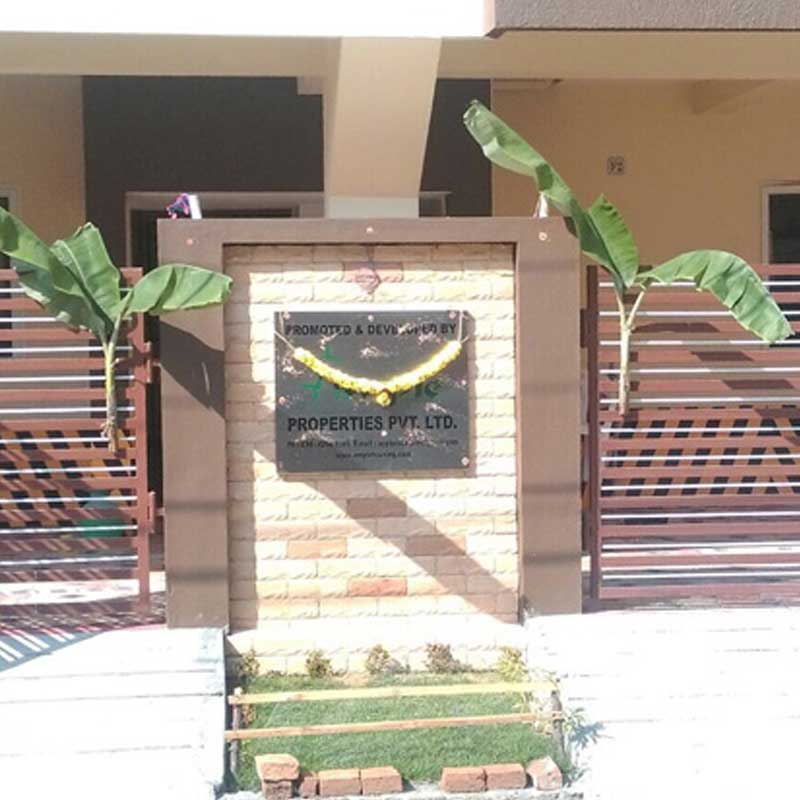

Gate/Name board/Letter box: As per architect details
Extra chargable:Modular kitchen/ extra grills/main door grills
No alterations permitted in scheme strictly.
FERNDALE PROJECT MATERIAL USED:
1. RCC STRUCTURE WITH EARTHQUAKE RESISTANT SEIZMIC DESIGN code applied.
PLUMBING :
ALL PVC PIPES STAR BRAND USED ISI
CPVC : ASHIRWAD MAKE ISI STANDARD
C.P FITTINGS:
HINDWARE CONTESSA SERIES
TILES:
JOHNSON / KAG
CEMENT :
PRIYA / KCP 43GRADE OPC MULTI PURPOSE ISI
WINDOWS: ALUTEK EUROPEAN CASEMENT WINDOWS ISI
LIFT : JONHNSON 6 PASSENGER ISI
CCTV : WITECH AUTOMATION
JOINERIES:
BEDROOM DOOR : BMW PANEL SHUTTERS
BATHROOM: BMW WATERPROOF SHUTTERS OR QUTE PVC DOORS
MAINDOOR LOCK: GODREJ VERTIBOLT
BEDROOM:MORTISE LAXMI BRAND
WHITE CEMENT : BIRLA
PUTTY: TRU FIT OR BIRLA
PAINTING INNER ASIAN TRACTOR EMULSION
OUTER PAINITNG: ASIAN ACE EXTERIOR EMULSION
